618JH

Active

ebm-papst Inc.

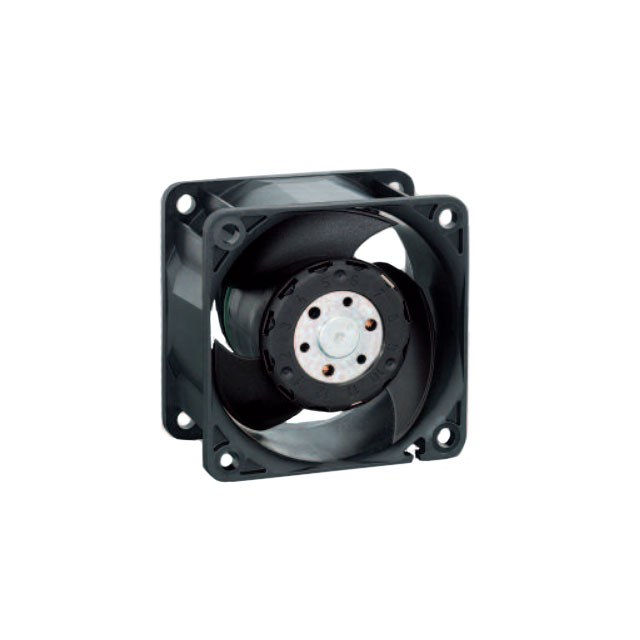

FAN AXIAL 60X32MM 48VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 60X32MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	618JH

Approval Agency	CE
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	57500 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	7.7 W
RPM	11700 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	36 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	32 mm

Part	Termination	Width [y]	Approval Agency	Material - Blade	Bearing Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Weight	Weight	Material - Frame	Voltage - Rated [custom]	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Noise	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]
ebm-papst Inc. 618JH	2 Wire Leads	32 mm	CE	Fiberglass Reinforced Nylon Polyamide (PA)	Ball	7.7 W	-20 °C	70 °C	-20 C	70 °C	11700 RPM	0.222 lb	100.7 g	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	48 VDC	Tubeaxial	36 VDC	56 VDC	53 dB	57500 Hrs	60 mm	60 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 41.2 CFM (1.15m³/min) 2 Wire Leads
