SPC5743RK1MLU5

Active

Freescale Semiconductor - NXP

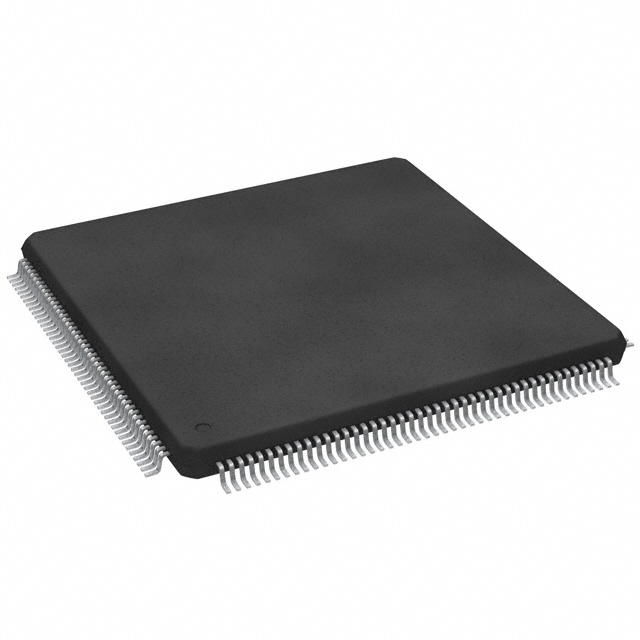

IC MCU 32BIT 2MB FLASH 176LQFP

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC MCU 32BIT 2MB FLASH 176LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	SPC5743RK1MLU5

Connectivity	LINbus, SCI, CANbus, SPI, Ethernet, I2C, UART/USART
Core Processor	e200z4
Core Size [custom]	32-Bit Dual-Core
Data Converters	12b SAR, 16b Sigma-Delta
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	176-LQFP
Program Memory Size	2 MB
Program Memory Type	FLASH
Qualification	AEC-Q100
RAM Size	128 K
Speed	200 MHz
Supplier Device Package	176-LQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3.5 V

Part	Package / Case	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Speed	Connectivity	Core Size [custom]	Peripherals	Supplier Device Package	Core Processor	RAM Size	Oscillator Type	Mounting Type	Data Converters	Grade	Qualification
Freescale Semiconductor - NXP SPC5743PK1AMLQ5R	144-LQFP	FLASH	64	12 b	2 MB	5.5 V	3.15 V	-40 °C	125 °C	150 MHz	CANbus Ethernet FlexRay LINbus SPI UART/USART	32-Bit Dual-Core	DMA LVD POR WDT	144-LQFP (20x20)	e200z4	256 K	Internal	Surface Mount
Freescale Semiconductor - NXP SPC5743RK1MLU5	176-LQFP	FLASH			2 MB	5.5 V	3.5 V	-40 °C	125 °C	200 MHz	CANbus Ethernet I2C LINbus SCI SPI UART/USART	32-Bit Dual-Core		176-LQFP (24x24)	e200z4	128 K	Internal	Surface Mount	12b SAR 16b Sigma-Delta	Automotive	AEC-Q100
Freescale Semiconductor - NXP SPC5743PK1AMLQ9	144-LQFP	FLASH	64	12 b	2 MB	5.5 V	3.15 V	-40 °C	125 °C	200 MHz		32-Bit Dual-Core	DMA LVD POR WDT	144-LQFP (20x20)	e200z4	256 K	Internal	Surface Mount
Freescale Semiconductor - NXP SPC5743PFK1AMLQ9	144-LQFP	FLASH	64	12 b	2 MB	5.5 V	3.15 V	-40 °C	125 °C	200 MHz	CANbus Ethernet FlexRay LINbus SPI UART/USART	32-Bit Dual-Core	DMA LVD POR WDT	144-LQFP (20x20)	e200z4	256 K	Internal	Surface Mount
Freescale Semiconductor - NXP SPC5743PK1AMLQ9R	144-LQFP	FLASH	64	12 b	2 MB	5.5 V	3.15 V	-40 °C	125 °C	200 MHz		32-Bit Dual-Core	DMA LVD POR WDT	144-LQFP (20x20)	e200z4	256 K	Internal	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 23.41

General part information

e200z4 MPC57xx Microcontroller IC 32-Bit Dual-Core 200MHz 2MB (2M x 8) FLASH 176-LQFP (24x24)
