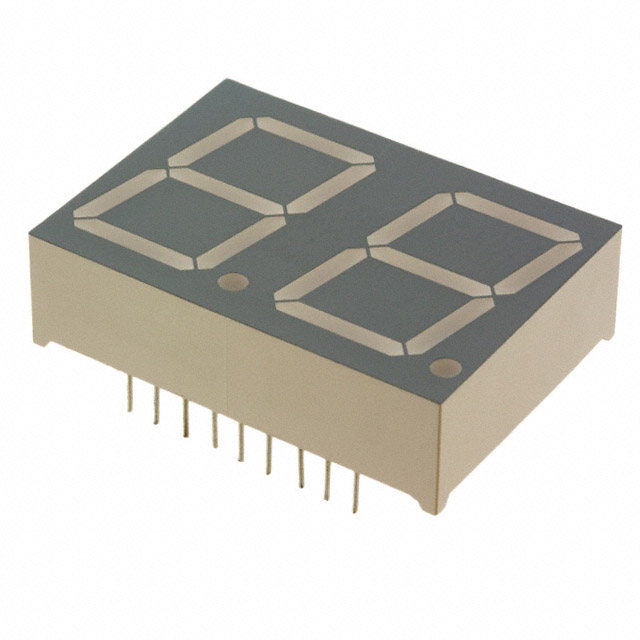

LDD-C812RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.8" DBL GRN 18DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDD-C812RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.8" DBL GRN 18DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-C812RI |
|---|---|
| Color | Green |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 20.32 mm |
| Digit/Alpha Size | 0.8 in |
| Display Type | 7-Segment |
| Millicandela Rating | 3.9 mcd |
| Number of Characters | 2 |
| Package / Case | 22 mm |
| Package / Case | 18-DIP |
| Package / Case | 0.866 in |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 1.016 in |
| Size / Dimension [x] | 25.8 mm |
| Size / Dimension [y] | 1.409 in |
| Size / Dimension [y] | 35.8 mm |
| Size / Dimension [z] | 10 mm |
| Size / Dimension [z] | 0.394 in |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.56 | |
| 14 | $ 2.51 | |||
| 112 | $ 2.03 | |||
| 504 | $ 1.80 | |||
| 1008 | $ 1.72 | |||
| 2002 | $ 1.65 | |||
| 5012 | $ 1.58 | |||
Description
General part information
LDD-C812 Series
Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Cathode 2.2V 10mA 1.016" H x 1.409" W x 0.394" D (25.80mm x 35.80mm x 10.00mm) 18-DIP (0.866", 22.00mm)
Documents
Technical documentation and resources
No documents available
