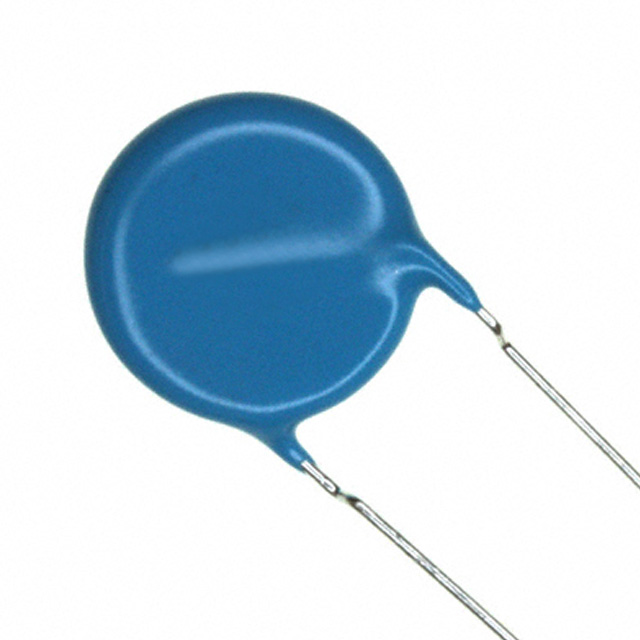

DEHR33F471KA3B

Obsolete

Murata Power Solutions Inc.

CAP CER 470PF 3.15KV RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet High Volt Ceramic Caps 250V-6.3kV Part Numbering

DEHR33F471KA3B

Obsolete

Murata Power Solutions Inc.

CAP CER 470PF 3.15KV RADIAL

Deep-Dive with AI

DocumentsDatasheet High Volt Ceramic Caps 250V-6.3kV Part Numbering

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DEHR33F471KA3B

Applications	General Purpose
Capacitance	470 pF
Features	Low Dissipation Factor, High Voltage
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Package / Case	Disc, Radial
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Temperature Coefficient	R
Tolerance	10 %
Voltage - Rated	3150 V
Voltage - Rated	3.15 kV

DEHR33F Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Voltage - Rated	Voltage - Rated	Capacitance	Package / Case	Tolerance	Features	Lead Style	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DEHR33F331KN3A	125 °C	-25 °C	7.5 mm	0.295 in	0.315 "	8 mm	Through Hole	11 mm	0.433 in	General Purpose	3150 V	3.15 kV	330 pF	Disc Radial	10 %	High Voltage Low Dissipation Factor	Formed Leads	R
Murata Power Solutions Inc. DEHR33F471KN3A	125 °C	-25 °C	7.5 mm	0.295 in	0.394 in	10 mm	Through Hole	13 mm	0.512 "	General Purpose	3150 V	3.15 kV	470 pF	Disc Radial	10 %	High Voltage Low Dissipation Factor	Formed Leads	R
Murata Power Solutions Inc. DEHR33F102KB3B	125 °C	-25 °C	7.5 mm	0.295 in	0.512 in	13 mm	Through Hole			General Purpose	3150 V	3.15 kV	0.001 µF	Disc Radial	10 %	High Voltage Low Dissipation Factor	Formed Leads	R	0.63 in	16 mm
Murata Power Solutions Inc. DEHR33F102KA3B	125 °C	-25 °C	7.5 mm	0.295 in	0.512 in	13 mm	Through Hole			General Purpose	3150 V	3.15 kV	0.001 µF	Disc Radial	10 %	High Voltage Low Dissipation Factor	Formed Leads	R	0.63 in	16 mm
Murata Power Solutions Inc. DEHR33F471KA3B	125 °C	-25 °C	7.5 mm	0.295 in	0.394 in	10 mm	Through Hole	13 mm	0.512 "	General Purpose	3150 V	3.15 kV	470 pF	Disc Radial	10 %	High Voltage Low Dissipation Factor	Straight	R
Murata Power Solutions Inc. DEHR33F272KA4B	125 °C	-25 °C	10 mm	0.394 in	0.748 in	19 mm	Through Hole	22 mm	0.866 in	General Purpose	3150 V	3.15 kV	2700 pF	Disc Radial	10 %	High Voltage Low Dissipation Factor	Formed Leads	R

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DEHR33F Series

470 pF ±10% 3150V (3.15kV) Ceramic Capacitor R Radial, Disc

Documents

Technical documentation and resources

Datasheet

High Volt Ceramic Caps 250V-6.3kV Part Numbering

Datasheet
