WP503GDT

Active

Kingbright

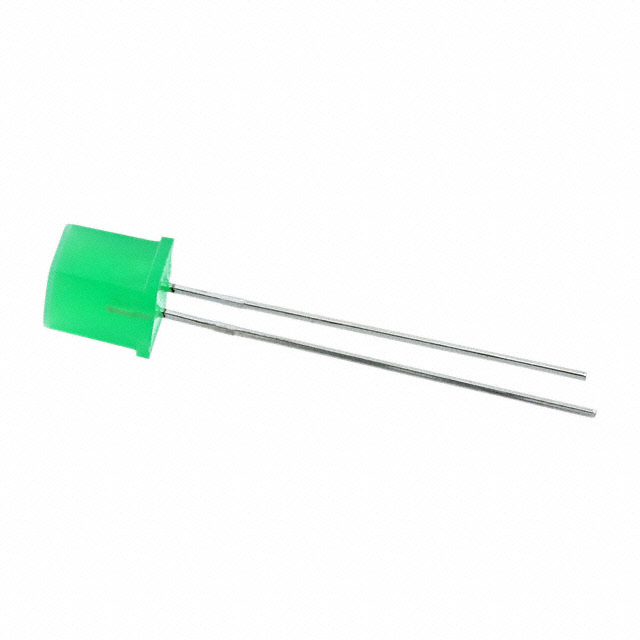

LED GRN DIFF SQUARE TYPE LED T/H

Search across all available documentation for this part.

Active

Kingbright

LED GRN DIFF SQUARE TYPE LED T/H

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Configuration	Wavelength - Dominant	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Lens Style	Color	Lens Size	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Current - Test	Lens Transparency	Height (Max) [Max] [z]	Viewing Angle	Mounting Type	Supplier Device Package
Kingbright WP503HDT	Radial	Standard	635 nm	0.8 mcd	6 mm	5 mm	Red	Square with Flat Top	Red	5 mm	2.25 V	700 nm	20 mA	Diffused	7.2 mm	110 °	Through Hole	Square Type LED
Kingbright WP503GDT	Radial	Standard	568 nm	3 mcd	6 mm	5 mm	Green	Square with Flat Top	Green	5 mm	2.2 V	565 nm	20 mA	Diffused	7.2 mm	110 °	Through Hole	Square Type LED
Kingbright WP503YDT	Radial	Standard	588 nm	3 mcd	6 mm	5 mm	Yellow	Square with Flat Top	Yellow	5 mm	2.1 V	590 nm	20 mA	Diffused	7.2 mm	110 °	Through Hole	Square Type LED
Kingbright WP503IDT	Radial	Standard	617 nm	2 mcd	6 mm	5 mm	Red	Square with Flat Top	Red	5 mm	2 V	627 nm	20 mA	Diffused	7.2 mm	110 °	Through Hole	Square Type LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green 568nm LED Indication - Discrete 2.2V Radial
