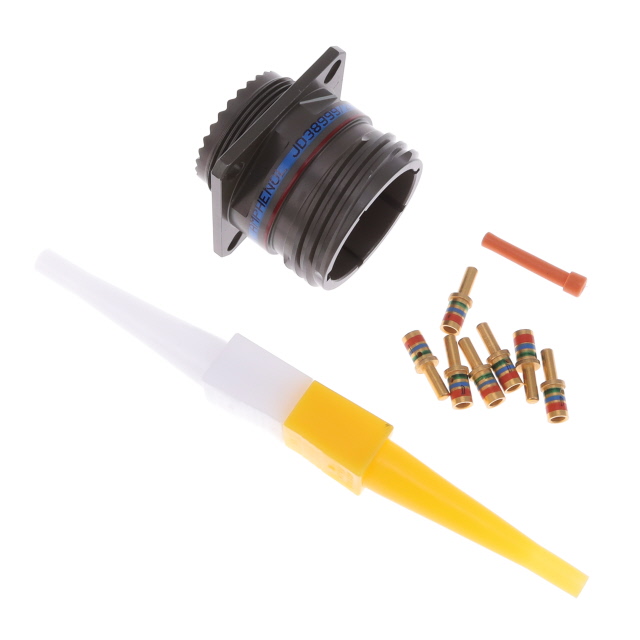

D38999/20WE6PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20WE6PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20WE6PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	17-6
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/20WE Series

Part	Mounting Feature	Contact Shape	Housing Color	Connector Type	Shell Size, MIL	Note	Shell Size - Insert	Shell Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Grade	Shell Finish	Orientation	Type	Contact Size	Qualification	Number of Positions	Ingress Protection	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Material	Contact Finish - Mating	Color	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Primary Material	Insert Material
Amphenol Aerospace Operations D38999/20WE8JB-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included	17-8	Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	B	For Female Sockets	16	MIL-DTL-38999 Series III	8	Environment Resistant
Amphenol Aerospace Operations D38999/20WE35JN-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included		Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	N	For Female Sockets		MIL-DTL-38999 Series III	55 positions	Environment Resistant	22D	17	35
Amphenol Aerospace Operations D38999/20WE26HN-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included		Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	N	For Male Pins	20	MIL-DTL-38999 Series III	26	Environment Resistant		17	26
Amphenol Aerospace Operations D38999/20WE8JN-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included	17-8	Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	N	For Female Sockets	16	MIL-DTL-38999 Series III	8	Environment Resistant
Amphenol Aerospace Operations D38999/20WE26JB-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included		Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	B	For Female Sockets	20	MIL-DTL-38999 Series III	26	Environment Resistant		17	26
Amphenol Aerospace Operations D38999/20WE6JN-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included	17-6	Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	N	For Female Sockets	12	MIL-DTL-38999 Series III	6	Environment Resistant
Amphenol Aerospace Operations D38999/20WE6SA	Flange			Receptacle Female Sockets	E		17-6	Aluminum		-65 ░C	347 °F	Shielded	Military	Olive Drab Cadmium	A			MIL-DTL-38999 Series III	6	Environment Resistant				Copper Alloy	Gold	Olive Drab	Crimp	1.27 µm	50 µin	Aerospace Aviation Marine Military	Metal
Amphenol Aerospace Operations D38999/20WE35PN	Flange			Male Pins Receptacle	E			Aluminum		-65 ░C	347 °F	Shielded	Military	Olive Drab Cadmium	N			MIL-DTL-38999 Series III	55 positions	Environment Resistant		17	35	Copper Alloy	Gold	Olive Drab	Crimp	1.27 µm	50 µin	Aerospace Aviation Marine Military	Metal	Thermoplastic
Amphenol Aerospace Operations D38999/20WE6HB-LC	Flange	Circular	Olive Drab	Receptacle Housing	E	Contacts Not Included	17-6	Aluminum	Crimp	-65 ░C	347 °F	Shielded	Military	Cadmium	B	For Male Pins	12	MIL-DTL-38999 Series III	6	Environment Resistant
Amphenol Aerospace Operations D38999/20WE6PN	Flange			Male Pins Receptacle	E		17-6	Aluminum		-65 ░C	347 °F	Shielded	Military	Olive Drab Cadmium	N			MIL-DTL-38999 Series III	6	Environment Resistant				Copper Alloy	Gold	Olive Drab	Crimp	1.27 µm	50 µin	Aerospace Aviation Marine Military	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 48.36
		10	$ 46.79
		25	$ 45.33
		50	$ 44.63
		100	$ 42.05
		250	$ 41.44
		500	$ 39.74
		1000	$ 38.69
	Bulk	1	$ 267.93
		10	$ 239.02
		25	$ 224.31

Description

General part information

D38999/20WE Series

6 Position Circular Connector Receptacle, Male Pins Crimp
