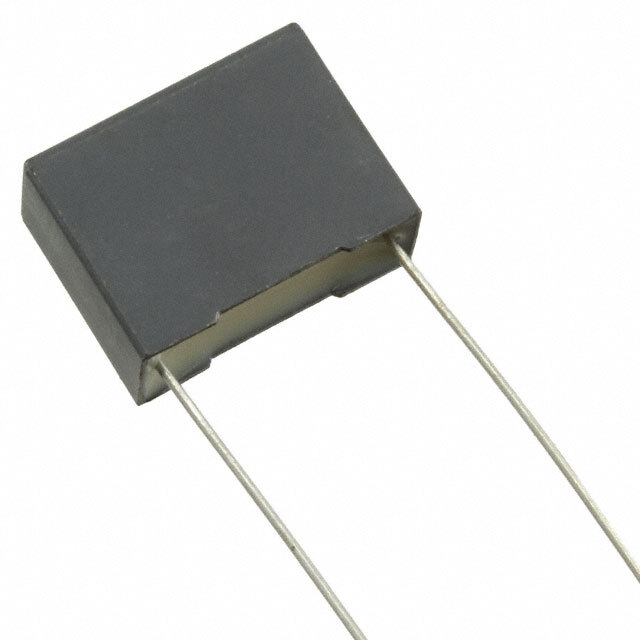

R75LI31504000K

Obsolete

KEMET

CAP FILM 0.15UF 10% 560VDC RAD

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 0.15UF 10% 560VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R75LI31504000K

Applications	DC Link, DC Filtering
Capacitance	0.15 ÁF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	7.5 mm
Size / Dimension [y]	0.295 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	560 V

Part	Lead Spacing	Lead Spacing	Applications	Tolerance	Package / Case	Voltage Rating - AC	Mounting Type	Termination	Dielectric Material	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET R75LI31504000K	15 mm	0.591 in	DC Filtering DC Link	10 %	Radial	250 V	Through Hole	PC Pins	Metallized Polypropylene (PP)	560 V	7.5 mm	18 mm	0.295 in	0.709 in	105 ░C	-55 °C	0.15 ÁF
KEMET R75LI33304000K	15 mm	0.591 in	DC Filtering DC Link	10 %	Radial	250 V	Through Hole	PC Pins	Metallized Polypropylene (PP)	560 V		18 mm	0.394 in	0.709 in	105 ░C	-55 °C	0.33 µF	16.1 mm	0.634 in	10 mm
KEMET R75LI32204000K	15 mm	0.591 in	DC Filtering DC Link	10 %	Radial	250 V	Through Hole	PC Pins	Metallized Polypropylene (PP)	560 V	8.5 mm	18 mm	0.335 in	0.709 in	105 ░C	-55 °C	0.22 µF	14.6 mm	0.575 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.15 µF Film Capacitor 250V 560V Polypropylene (PP), Metallized Radial
