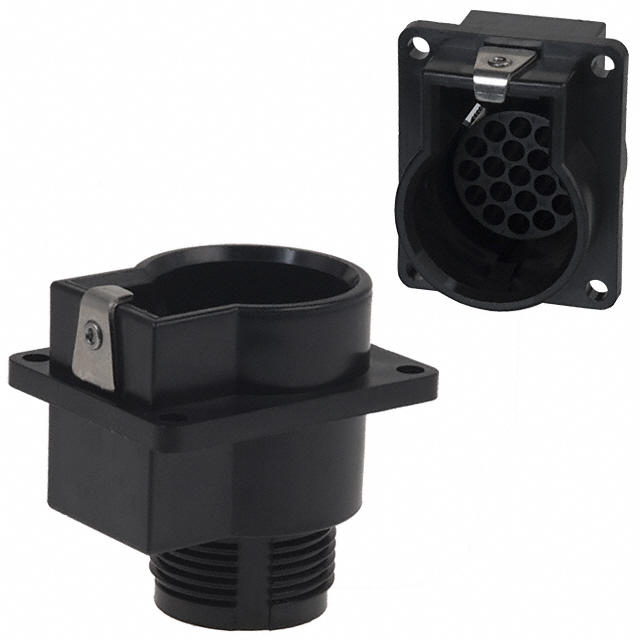

MBG19R-11

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 19POS PNL MT

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 19POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MBG19R-11

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	19
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Type	Insert Material	Connector Type	Type	Fastening Type	Material Flammability Rating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Shell Size - Insert	Contact Shape	Housing Color	Number of Positions	Note	Contact Size	Mounting Feature
Souriau-Sunbank by Eaton MBG19R-11	Crimp	Thermoplastic Halogen Free	Receptacle Housing	For Female Sockets	Latch Lock	UL94 V-0	Unshielded	-55 °C	125 °C	Thermoplastic Polyester	19	Circular	Black	19	Contacts Not Included	16	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle Housing Panel Mount
