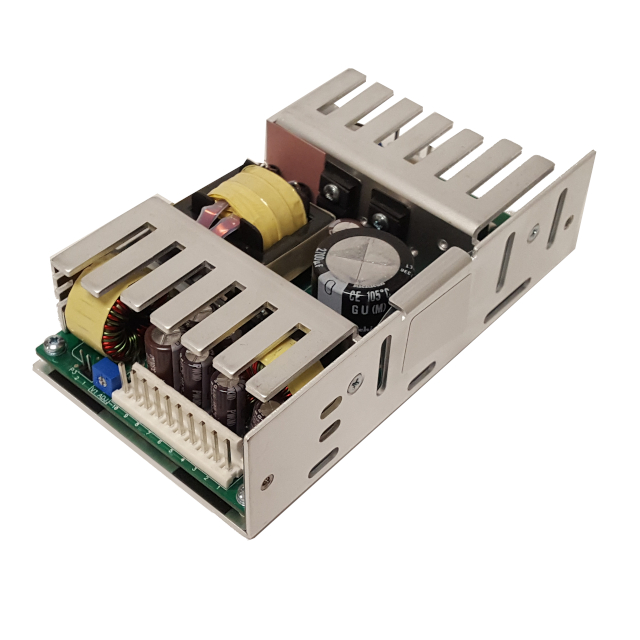

1010484CH

Active

Integrated Power Designs

AC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Active

Integrated Power Designs

AC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	1010484CH

Applications	Industrial, Laboratory, Medical, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	4 A
Current - Output 2	3 A
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	110 W
Size / Dimension [x]	133.4 mm
Size / Dimension [x]	5.25 "
Size / Dimension [y]	3.12 "
Size / Dimension [y]	79.2 mm
Size / Dimension [z]	1.48 "
Size / Dimension [z]	37.6 mm
Standard Number	60601-1, 62368-1
Type	Chassis
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

Part	Type	Standard Number	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Mounting Type	Voltage - Output 1	Features	Number of Outputs	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current - Output 1	Current - Output 2
Integrated Power Designs 1010484CH	Chassis	60601-1 62368-1	Industrial ITE (Commercial) Laboratory Medical	3.12 "	133.4 mm	79.2 mm	1.48 "	37.6 mm	5.25 "	110 W	Chassis Mount	15 V	Adjustable Output Universal Input	2	-15 V	70 °C	0 °C	CE cURus TUV UKCA	4 A	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Chassis AC DC Converters 2 Output 15V -15V 85 ~ 264 VAC Input
