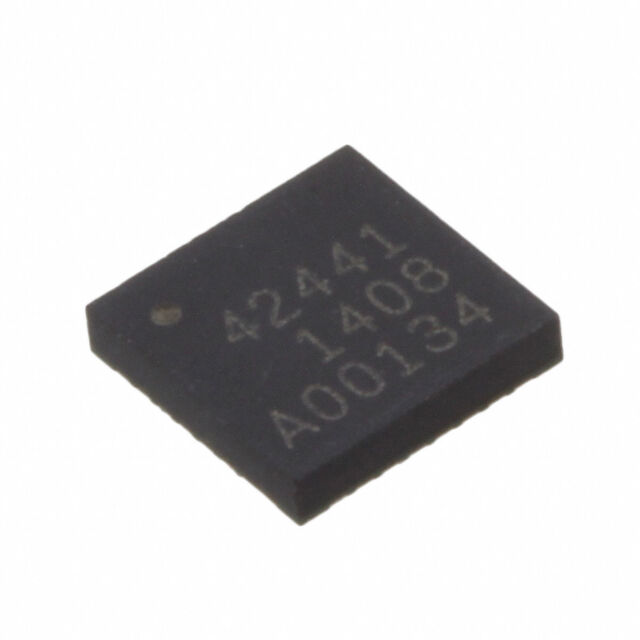

PE42441E-Z
ActivepSemi Corporation
IC RF SWITCH SP4T 8GHZ 32LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42441E-Z
ActivepSemi Corporation
IC RF SWITCH SP4T 8GHZ 32LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42441E-Z |
|---|---|
| Frequency Range [Max] | 8 GHz |
| Frequency Range [Min] | 10 MHz |
| IIP3 | 58 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.8 dB |
| Isolation | 45 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 32-VFLGA Exposed Pad |
| RF Type | WLAN |
| Test Frequency | 3 GHz |
| Topology | Absorptive |
| Voltage - Supply [Max] | 3.55 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.04 | |
| 101 | $ 6.32 | |||
| 1000 | $ 4.21 | |||
| Digi-Reel® | 1 | $ 9.04 | ||
| 101 | $ 6.32 | |||
| 1000 | $ 4.21 | |||
| Tape & Reel (TR) | 3000 | $ 4.21 | ||
Description
General part information
PE42441 Series
RF Switch IC WLAN SP4T 8 GHz 50Ohm 32-LGA (5x5)
