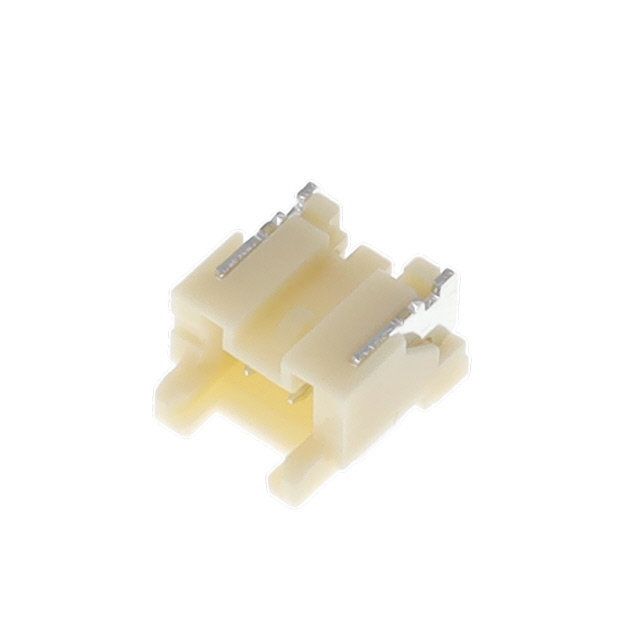

BM02B-PASS-TFT

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 2POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM02B-PASS-TFT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.1 mm, 16.2 mm, 16 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Style	Number of Positions	Contact Finish - Post	Current Rating (Amps)	Features	Termination	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Connector Type	Contact Shape	Contact Type	Number of Positions Loaded	Mounting Type	Insulation Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Material Flammability Rating	Insulation Material	Contact Material
JST Sales America Inc. BM02B-PASS-TFT	Board to Cable/Wire	2	Tin	3 A	Pick and Place Solder Retention	Solder	Shrouded - 4 Wall	0.079 in	2 mm	250 VDC	0.35 in	8.89 mm	Locking Ramp	Header	Square	Male Pin	All	Surface Mount	Natural	1	-25 °C	85 °C	11.1 mm 16 mm 16.2 mm	UL94 V-0	Nylon Polyamide (PA)	Copper Alloy
JST Sales America Inc. BM02B-PASS-1-TFT	Board to Cable/Wire	2	Tin	3 A	Board Guide Pick and Place Solder Retention	Solder	Shrouded - 4 Wall	0.079 in	2 mm	250 VDC	0.35 in	8.89 mm	Locking Ramp	Header	Square	Male Pin	All	Surface Mount	Natural	1	-25 °C	85 °C	11.1 mm 16 mm 16.2 mm	UL94 V-0	Nylon Polyamide (PA)	Copper Alloy
