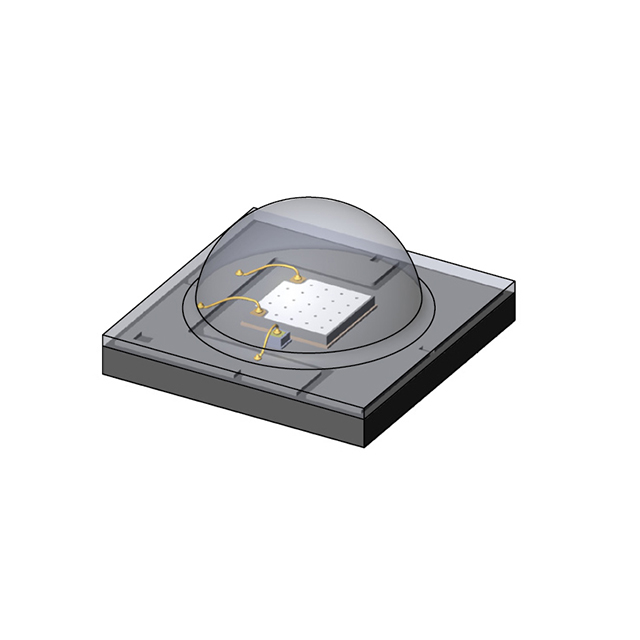

SST-10-UV-B130-G385-00

Active

Luminus Devices Inc.

UV MOD

Search across all available documentation for this part.

Active

Luminus Devices Inc.

UV MOD

Technical Specifications

Parameters and characteristics for this part

Part	Orientation	Viewing Angle [custom]	Type	Voltage - Forward (Vf) (Typ)	Operating Temperature	Wavelength	Package / Case	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Current - DC Forward (If) (Max) [Max]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Wavelength [Max]	Wavelength [Min]	Current - Max [Max]	Supplier Device Package	Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Current - DC Forward (If) (Max)
Luminus Devices Inc. SST-10-IRD-B90H-S810	Top View	90 °	Infrared (IR)	3 V	115 °C	815 nm	3535 Metric	1414	770 mW/sr	Surface Mount	1.5 A
Luminus Devices Inc. SST-10-SB-B130-M470				2.85 V		470 nm	3535 Metric	1414		Surface Mount		5.3 °C/W	0.08 in	2.03 mm	3.45 mm	0.136 in	0.136 in	3.45 mm	Blue	480 nm	460 nm	1.5 A	3535	350 mA	130 °
Luminus Devices Inc. SST-10-UV-B130-G385-00	Top View		Ultraviolet (UV)	3.4 V	100 °C	385 nm	3535 Metric	1414		Surface Mount	1.5 A														130 °
Luminus Devices Inc. SST-10-R-B130-G630				2.1 V			3535 Metric	1414		Surface Mount			0.08 in	2.03 mm	3.45 mm	0.136 in	0.136 in	3.45 mm	Red			1.5 A	3535	350 mA	130 °	290 mW
Luminus Devices Inc. SST-10-IR-B130-K850-00	Top View		Infrared (IR)	1.5 V		850 nm		2-SMD No Lead Exposed Pad		Surface Mount	1.5 A														130 °
Luminus Devices Inc. SST-10-UV-B130-F365-00	Top View		Ultraviolet (UV)	3.7 V	212 °F					Surface Mount										370 nm	365 nm				130 °		1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ultraviolet (UV) Emitter 385nm (380nm ~ 390nm) 3.4V 1.5A 130° 1414 (3535 Metric)
