RO3101

Obsolete

Murata Power Solutions Inc.

SAW RES 433.9200MHZ T/H

Deep-Dive with AI

Search across all available documentation for this part.

RO3101

Obsolete

Murata Power Solutions Inc.

SAW RES 433.9200MHZ T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RO3101

Frequency	433.92 MHz
Frequency Stability	0.037 ppm
Frequency Tolerance	75 kHz
Height [z]	3.18 mm
Height [z]	0.125 "
Impedance	1 MOhms
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

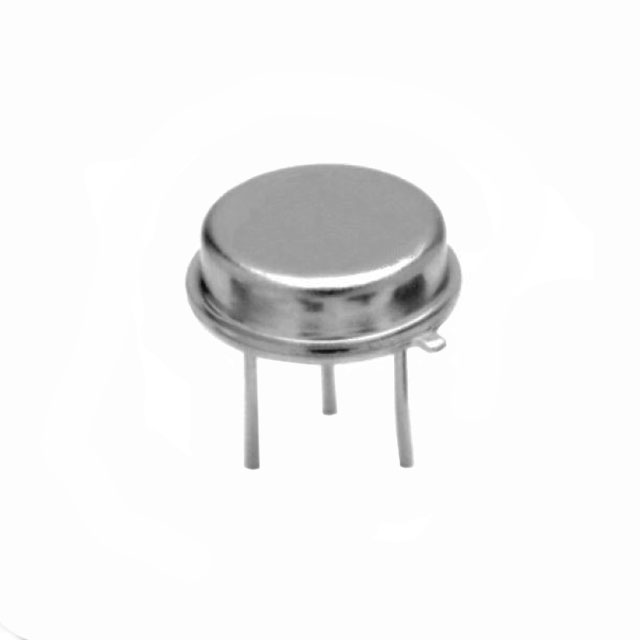

Package / Case	TO-39-3 Lens Top Metal Can
Size / Dimension	9.4 mm
Size / Dimension [diameter]	0.37 in
Type	SAW

RO31 Series

Part	Frequency	Frequency Tolerance	Height [z]	Height [z]	Impedance	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Stability	Capacitance	Features	Size / Dimension	Size / Dimension [diameter]
Murata Power Solutions Inc. RO3104A	303.825 MHz	75 kHz	0.063 in	1.6 mm	1 MOhms	4-SMD No Lead	5 mm	0.138 in	3.5 mm	0.197 in	Surface Mount	SAW	85 °C	-40 °C	0.032 ppm
Murata Power Solutions Inc. RO3112D	433.42 MHz	75 kHz	0.055 in	1.4 mm	1 MOhms	6-SMD No Lead					Surface Mount	SAW	85 °C	-40 °C	0.032 ppm	3.7 pF	Built in Capacitor
Murata Power Solutions Inc. RO3144E-1	916.5 MHz	150 kHz	0.054 in	1.38 mm	1 MOhms	6-SMD No Lead	3 mm	0.118 in	3 mm	0.118 in	Surface Mount	SAW	125 °C	-40 °C	0.032 ppm	1.9 pF	Built in Capacitor
Murata Power Solutions Inc. RO3101E-1	433.92 MHz	50 kHz	0.054 in	1.38 mm		6-SMD No Lead	3 mm	0.118 in	3 mm	0.118 in	Surface Mount	SAW	105 ░C	-40 °C	0.032 ppm
Murata Power Solutions Inc. RO3156A	868.95 MHz	200 kHz	0.063 in	1.6 mm	1 MOhms	4-SMD No Lead	5 mm	0.138 in	3.5 mm	0.197 in	Surface Mount	SAW	85 °C	-40 °C	0.032 ppm
Murata Power Solutions Inc. RO3101	433.92 MHz	75 kHz	0.125 "	3.18 mm	1 MOhms	TO-39-3 Lens Top Metal Can					Through Hole	SAW	85 °C	-40 °C	0.037 ppm			9.4 mm	0.37 in
Murata Power Solutions Inc. RO3112E	433.42 MHz	75 kHz	0.054 in	1.38 mm	1 MOhms	6-SMD No Lead	3 mm	0.118 in	3 mm	0.118 in	Surface Mount	SAW	85 °C	-40 °C	0.032 ppm
Murata Power Solutions Inc. RO3101A	433.92 MHz	75 kHz	0.063 in	1.6 mm		4-SMD No Lead	5 mm	0.138 in	3.5 mm	0.197 in	Surface Mount	SAW	85 °C	-40 °C	0.032 ppm
Murata Power Solutions Inc. RO3164E-1	868.35 MHz	150 kHz	0.054 in	1.38 mm	1 MOhms	6-SMD No Lead	3 mm	0.118 in	3 mm	0.118 in	Surface Mount	SAW	125 °C	-40 °C	0.032 ppm
Murata Power Solutions Inc. RO3144	916.5 MHz	200 kHz	0.125 "	3.18 mm	1 MOhms	TO-39-3 Lens Top Metal Can					Through Hole	SAW	85 °C	-40 °C	0.037 ppm	1.7 pF	Built in Capacitor	9.4 mm	0.37 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 243.00

Description

General part information

RO31 Series

433.92 MHz SAW Resonator 0.037ppm 1 MOhms -40°C ~ 85°C Through Hole

Documents

Technical documentation and resources

No documents available
