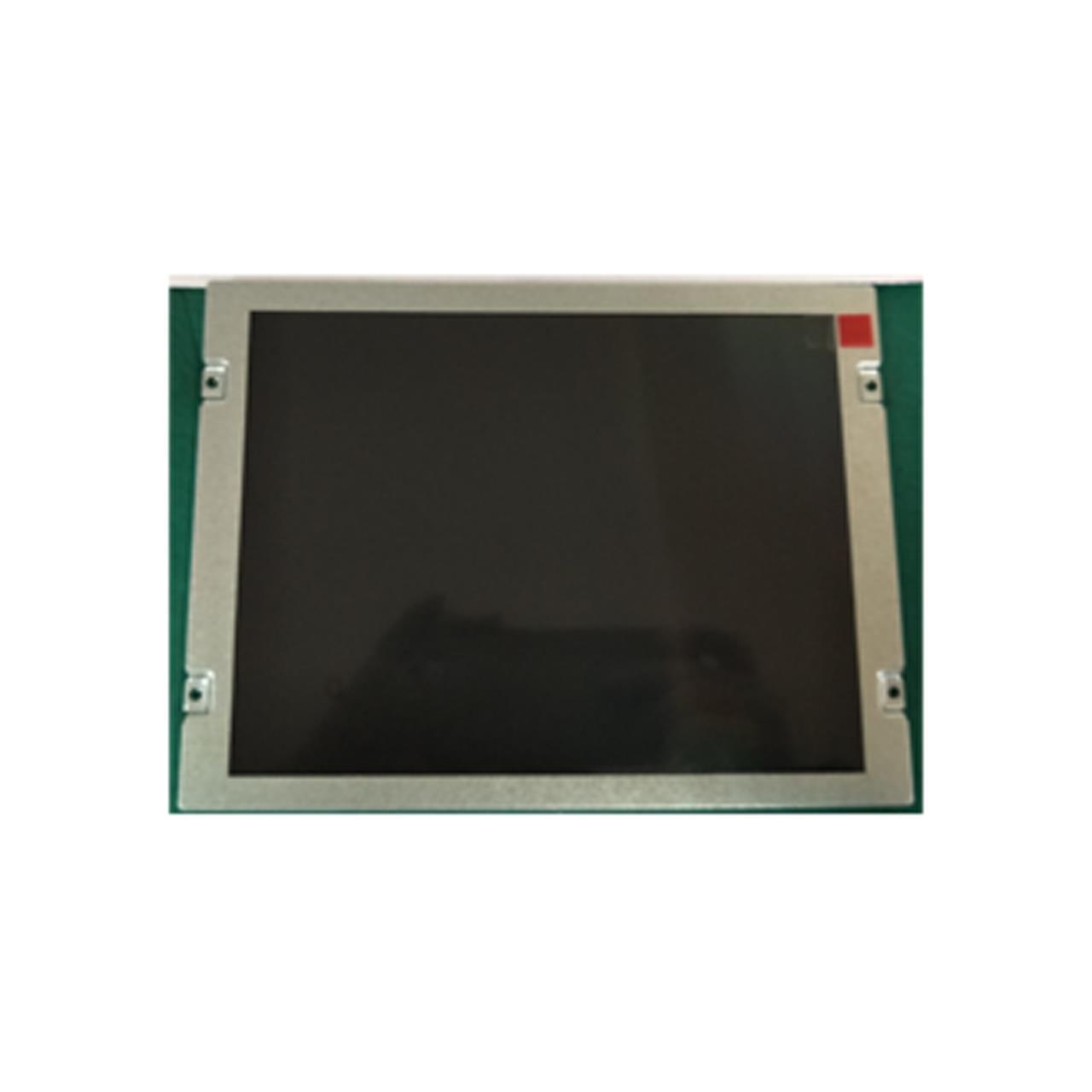

DMT084W2NLNT0-1A
ActiveDensitron
MITSUBISHI REPLACE AA084SC01-DA3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMT084W2NLNT0-1A
ActiveDensitron
MITSUBISHI REPLACE AA084SC01-DA3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMT084W2NLNT0-1A |
|---|---|
| Background Color | White |
| Backlight | LED - White |
| Controller Type | HX8696-A00DPD300-E, HX8282-A01DPD300-C |
| Diagonal Screen Size | 213.36 mm |
| Diagonal Screen Size | 8.4 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.21 mm |
| Dot Pitch [y] | 0.21 mm |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Viewing Area [x] | 173.4 mm |
| Viewing Area [y] | 130.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 126.66 | |
| 101 | $ 122.24 | |||
| 501 | $ 120.77 | |||
| 1001 | $ 117.82 | |||
Description
General part information
DMT084W2NLNT0-1A
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 8.4" (213.36mm) 800 x 600 (SVGA)
