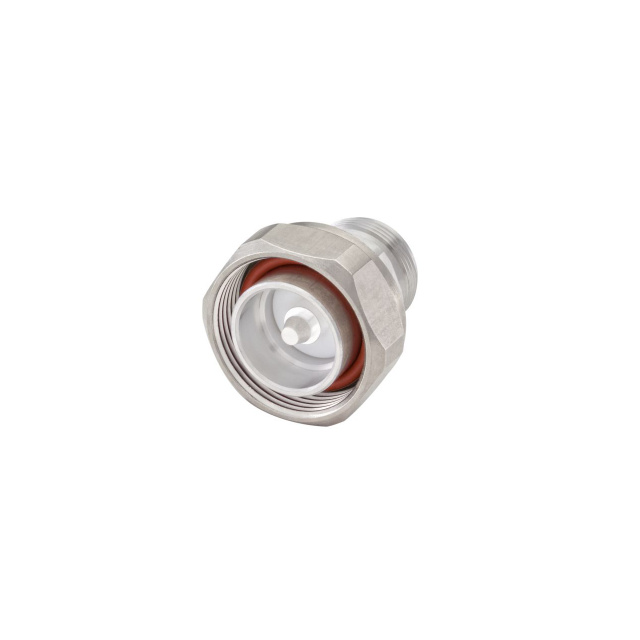

60S165-KIMN1

Active

Rosenberger

7/16 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

7/16 ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	60S165-KIMN1

Adapter Series	4.1/9.5, 7/16
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, 4.1/9.5 Jack
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.27 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Convert From (Adapter End)	Mounting Type	Insertion Loss	Mating Cycles	Body Finish	Impedance	Style	Dielectric Material	Center Contact Plating	Convert To (Adapter End)	Adapter Type	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Center Contact Material	Frequency - Max [Max]	Body Material
Rosenberger 60S165-KIMN1	4.1/9.5 Jack Female Socket	Free Hanging (In-Line)	0.27 dB	500	White Bronze	50 Ohms	Straight	Polytetrafluoroethylene (PTFE)	Silver	7/16 Plug Male Pin	Plug to Jack	Between Series	155 °C	-55 °C	4.1/9.5 7/16	Beryllium Copper	7.5 GHz	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector 4.1/9.5 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
