Q-1W04W0008012i

Active

Amphenol Custom Cable

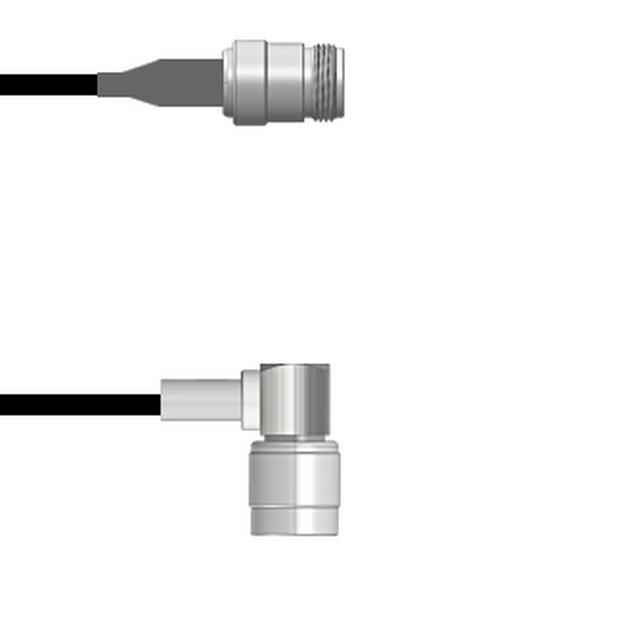

CBL ASSY NTYPE-TNC JACK-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W04W0008012i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W04W0008012i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms

Q-1W04W0 Series

Part	Frequency - Max [Max]	Overall Impedance	1st Connector Mounting Type	1st Connector	2nd Contact Gender	Cable Type	2nd Connector Mounting Type	Features	Color	2nd Connector	Length	Length	1st Contact Gender	Length
Amphenol Custom Cable Q-1W04W0008024i	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	24 "	609.6 mm	Female
Amphenol Custom Cable Q-1W04W0008003M	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	118.1 in	3 m	Female	9.8 '
Amphenol Custom Cable Q-1W04W0008048i	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	48 in	1200 mm	Female	4 ft
Amphenol Custom Cable Q-1W04W0008108i	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	108 in	2.7 m	Female	9 ft
Amphenol Custom Cable Q-1W04W0008084i	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	84 in	2.1 m	Female	7 ft
Amphenol Custom Cable Q-1W04W0008012i	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	12 "	304.8 mm	Female
Amphenol Custom Cable Q-1W04W00080.5M	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	19.69 "	50 cm	Female
Amphenol Custom Cable Q-1W04W00081.5M	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	59.1 in	1.5 m	Female	4.9 ft
Amphenol Custom Cable Q-1W04W0008002M	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	78.7 in	2 m	Female	6.6 ft
Amphenol Custom Cable Q-1W04W00082.5M	11 GHz	50 Ohms	Free Hanging (In-Line)	N-Type Jack	Male	RG-58	Free Hanging (In-Line)	Shielded	Black	TNC Plug Right Angle	98.4 in	2.5 m	Female	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.09
		25	$ 52.07
		50	$ 51.04
		100	$ 50.02
		250	$ 49.00

Description

General part information

Q-1W04W0 Series

Cable Assembly Coaxial N-Type to TNC RG-58 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
