19360101541

LTB

HARTING Technology Group

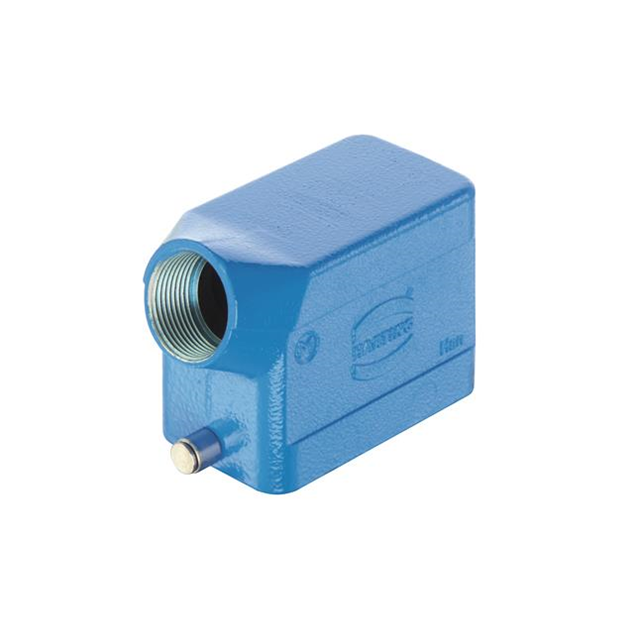

HAN B SIDE ENTRY LC M25 EXI_FOR

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN B SIDE ENTRY LC M25 EXI_FOR

Technical Specifications

Parameters and characteristics for this part

Specification	19360101541

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.244 "
Size / Dimension [z]	57 mm
Style	Side Entry
Thread Size	M25

Part	Style	Thread Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Housing Color	Ingress Protection	Connector Type	Housing Material	Size	Housing Finish	Operating Temperature [Min]	Operating Temperature [Max]	Lock Location	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19360101541	Side Entry	M25	2.244 "	72.6 mm	43 mm	1.693 in	2.858 "	57 mm	Blue	IP65 - Dust Tight Water Resistant	Hood	Zinc Die Cast	10B	Powder Coated	-20 C	40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 19360101421	Top Entry	M25	1.772 in	72.6 mm		1.693 in	2.858 "		Blue	IP65 - Dust Tight Water Resistant	Hood	Zinc Die Cast	10B	Powder Coated	-20 C	40 °C	Locking Clip (2) on Base Bottom	43 mm	45 mm
HARTING Technology Group 19360101441	Top Entry	M25	1.772 in	72.6 mm		1.693 in	2.858 "		Blue	IP65 - Dust Tight Water Resistant	Hood	Zinc Die Cast	10B	Powder Coated	-20 C	40 °C	Locking Clip (1) on Base Bottom	43 mm	45 mm
HARTING Technology Group 19360101521	Side Entry	M25							Blue	IP65 - Dust Tight Water Resistant	Hood	Zinc Die Cast	10B	Powder Coated	-20 C	40 °C	Locking Clip (2) on Base Bottom
HARTING Technology Group 19360101520	Side Entry	M20							Blue	IP65 - Dust Tight Water Resistant	Hood	Zinc Die Cast	10B	Powder Coated	-20 C	40 °C	Locking Clip (2) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 39.85

General part information

Hood Connector Side Entry M25 10B IP65 - Dust Tight, Water Resistant
