838-22-010-10-001101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 10POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 10POS PCB

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Connector Type	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Material	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts [custom]	Number of Contacts
Mill-Max Manufacturing Corp. 838-22-018-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 838-22-006-10-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Through Hole	Gold	Copper Alloy	0.25 Ám	10 Áin	6
Mill-Max Manufacturing Corp. 838-22-008-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin		8
Mill-Max Manufacturing Corp. 838-22-014-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin		14
Mill-Max Manufacturing Corp. 838-22-010-10-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Through Hole	Gold	Copper Alloy	0.25 Ám	10 Áin		10
Mill-Max Manufacturing Corp. 838-22-004-10-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Through Hole	Gold	Copper Alloy	0.25 Ám	10 Áin	4
Mill-Max Manufacturing Corp. 838-22-020-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 838-22-012-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin		12
Mill-Max Manufacturing Corp. 838-22-004-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin	4
Mill-Max Manufacturing Corp. 838-22-010-30-001101	2	Piston	2 mm	0.079 in	0.079 in	2 mm	Surface Mount	Gold	Copper Alloy	0.51 µm	20 µin		10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

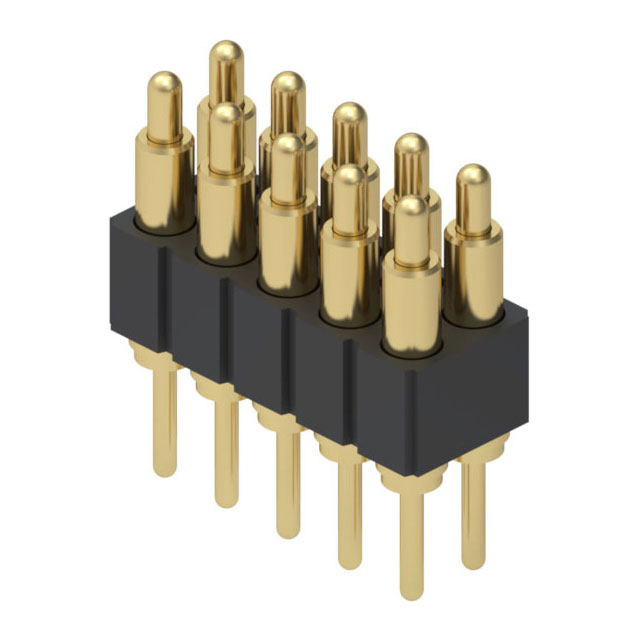

10 Position Spring Piston Connector Through Hole
