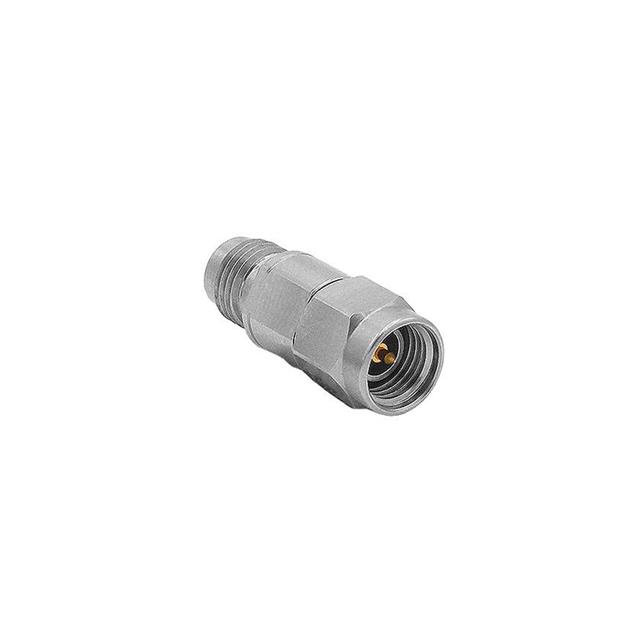

RFAA240P350P

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 2.4MM COAXIAL, PLUG, 3.5MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFAA240P350P

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 2.4MM COAXIAL, PLUG, 3.5MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAA240P350P

Adapter Series [Max]	3.5 mm
Adapter Series [Min]	2.4 mm
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	2.4 mm
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	50 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

RFAA240 Series

Part	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Dielectric Material	Adapter Series [Min]	Adapter Series [Max]	Center Gender	Frequency - Max [Max]	Style	Impedance	Mating Cycles	Conversion Type	Adapter Type	Mounting Type	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)
BULGIN LIMITED RFAA240P350P	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	3.5 mm	Male to Male	50 GHz	Straight	50 Ohms	500	Between Series	Plug to Plug	Free Hanging (In-Line)	2.4 mm
BULGIN LIMITED RFAA240J292J	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.92 mm	Female to Female	50 GHz	Straight	50 Ohms	500	Between Series	Jack to Jack	Free Hanging (In-Line)	2.4 mm	2.92 mm	OS-2.9 Jack Female Socket
BULGIN LIMITED RFAA240J292P	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.92 mm		50 GHz	Straight	50 Ohms	500	Between Series	Plug to Jack	Free Hanging (In-Line)	2.4 mm		2.92mm (OS-2.9) Plug Male Pin
BULGIN LIMITED RFAA240J350J	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	3.5 mm	Female to Female	50 GHz	Straight	50 Ohms	500	Between Series	Jack to Jack	Free Hanging (In-Line)	2.4 mm		3.5mm Jack Female Socket
BULGIN LIMITED RFAA240J350P	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	3.5 mm		50 GHz	Straight	50 Ohms	500	Between Series	Plug to Jack	Free Hanging (In-Line)	2.4 mm
BULGIN LIMITED RFAA240P292P	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.92 mm	Male to Male	50 GHz	Straight	50 Ohms	500	Between Series	Plug to Plug	Free Hanging (In-Line)	2.4 mm		2.92mm (OS-2.9) Plug Male Pin
BULGIN LIMITED RFAA240P240P	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.4 mm	Male to Male	50 GHz	Straight	50 Ohms	500	Same Series	Plug to Plug	Free Hanging (In-Line)	2.4 mm		2.4mm (APC-2.4 OS-50) Plug Male Pin
BULGIN LIMITED RFAA240P240J	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.4 mm		50 GHz	Straight	50 Ohms	500	Same Series	Plug to Jack	Free Hanging (In-Line)	2.4 mm	2.4 mm
BULGIN LIMITED RFAA240P292J	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.92 mm		50 GHz	Straight	50 Ohms	500	Between Series	Plug to Jack	Free Hanging (In-Line)	2.4 mm	2.92 mm	OS-2.9 Jack Female Socket
BULGIN LIMITED RFAA240J240J	Stainless Steel	85 °C	-40 °C	Beryllium Copper	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	2.4 mm	2.4 mm	Female to Female	50 GHz	Straight	50 Ohms	500	Same Series	Jack to Jack	Free Hanging (In-Line)	2.4 mm	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 142.71
Newark	Each	1	$ 224.52
		1	$ 224.52

Description

General part information

RFAA240 Series

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms
