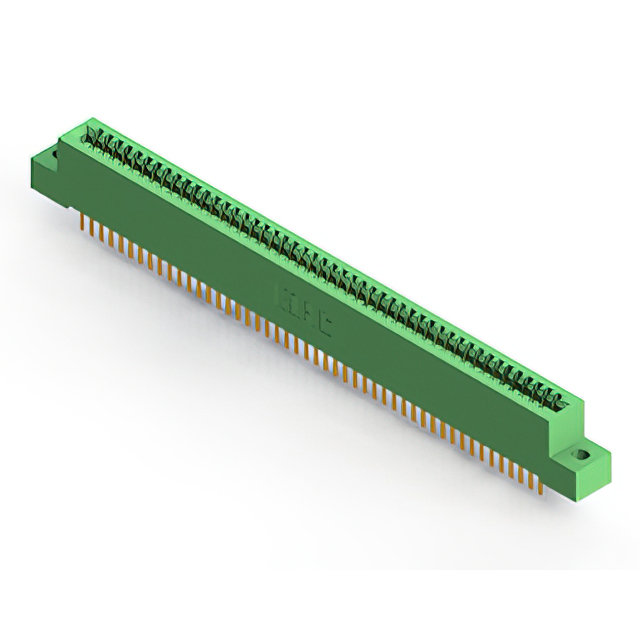

842-096-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 96POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-096-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 96POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-096-520-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Number of Positions/Bay/Row [custom] | 48 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
842-096 Series
| Part | Mounting Type | Card Type | Contact Material | Material - Insulation | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Termination | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Contact Type | Color | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | ||||
EDAC Inc. | Through Hole | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Through Hole Right Angle | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Through Hole | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | |
EDAC Inc. | Board Edge Straddle Mount | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Card Extender |
EDAC Inc. | Through Hole | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Wire Wrap | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |
EDAC Inc. | Through Hole | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |
EDAC Inc. | Through Hole Right Angle | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Through Hole | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Board Edge Straddle Mount | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | Female | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Cantilever | Green | 48 | 96 | 10 Áin | 0.25 Ám | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-096 Series
96 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
