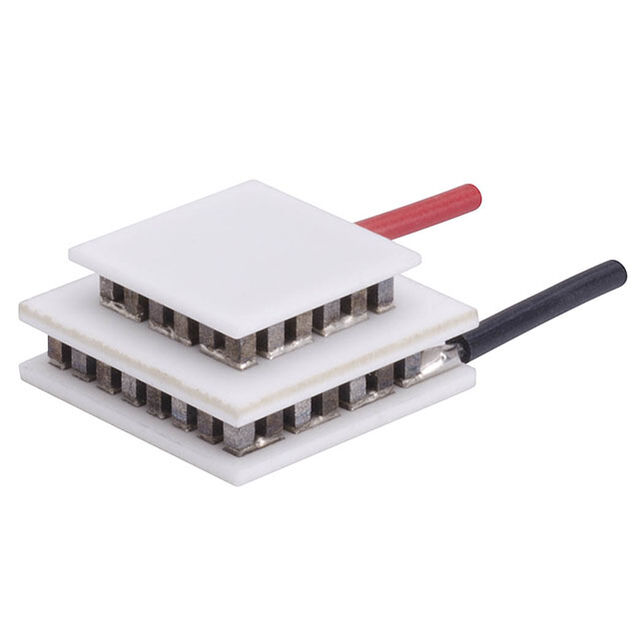

9350001-304
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,049,14,14,15,15,00,W8
Deep-Dive with AI
Search across all available documentation for this part.
9350001-304
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,049,14,14,15,15,00,W8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9350001-304 |
|---|---|
| Current - Max [Max] | 4 A |
| Delta Tmax @ Th | 87 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 7.39 mm |
| Number of Stages | 2 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 6 W |
| Size / Dimension [x] | 20.12 mm |
| Size / Dimension [y] | 20.12 mm |
| Voltage - Max [Max] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 115.20 | |
| 5 | $ 108.30 | |||
Description
General part information
9350001 Series
Peltier Module 6.0W @ 25°C 4 A 80°C
