H3BKH-4018G

Active

Assmann WSW Components

IDC CBL - HHSR40H/AE40G/HHPK40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR40H/AE40G/HHPK40H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BKH-4018G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Strain Relief (Socket)
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Positions	Pitch - Cable	Pitch - Cable	Shielding	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Features	Cable Termination	Connector Type	Contact Finish	Pitch - Connector	Pitch - Connector	Length	Length	Length
Assmann WSW Components H3BKH-4018M	40	0.05 "	1.27 mm	Unshielded	457.2 mm	1.5 ft	15 µin	0.38 µm	Multiple Ribbon	2	Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	0.1 in	2.54 mm
Assmann WSW Components H3BKH-4036M	40	0.05 "	1.27 mm	Unshielded	914.4 mm	3 ft	15 µin	0.38 µm	Multiple Ribbon	2	Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	0.1 in	2.54 mm
Assmann WSW Components H3BKH-4018G	40	0.05 "	1.27 mm	Unshielded	457.2 mm	1.5 ft	15 µin	0.38 µm		2	Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	0.1 in	2.54 mm
Assmann WSW Components H3BKH-4006M	40	0.05 "	1.27 mm	Unshielded			15 µin	0.38 µm	Multiple Ribbon	2	Polarizing Key (Plug) Strain Relief (Socket)	IDC	Socket to Plug	Gold	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

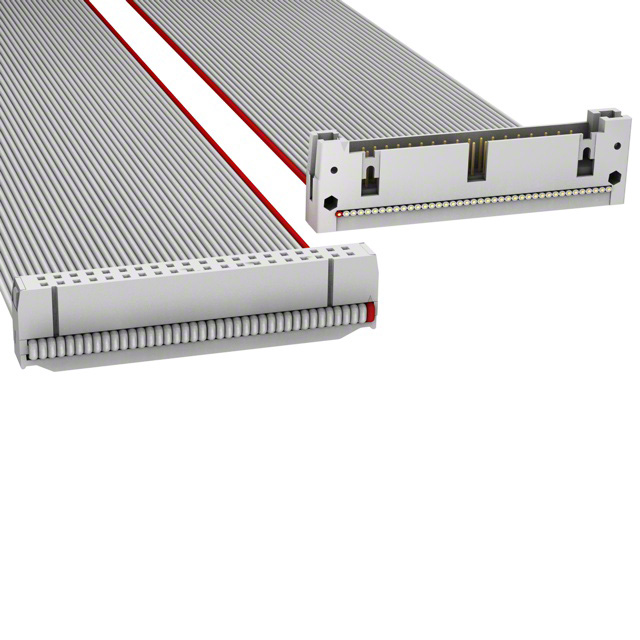

40 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
