TB9057FG
ActiveToshiba Semiconductor and Storage
AUTOMOTIVE MOTOR H-BRIDGE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB9057FG |
|---|---|
| Function | Driver |
| Grade | Automotive |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Pre-Driver |
| Package / Case | 48-LQFP |
| Qualification | AEC-Q100 |
| Supplier Device Package | 48-LQFP (7x7) |
| Technology | Bi-CMOS |
| Voltage - Supply [Max] | 21 V |
| Voltage - Supply [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.32 | |
| 10 | $ 5.70 | |||
| 25 | $ 5.62 | |||
Description
General part information
TB9057 Series

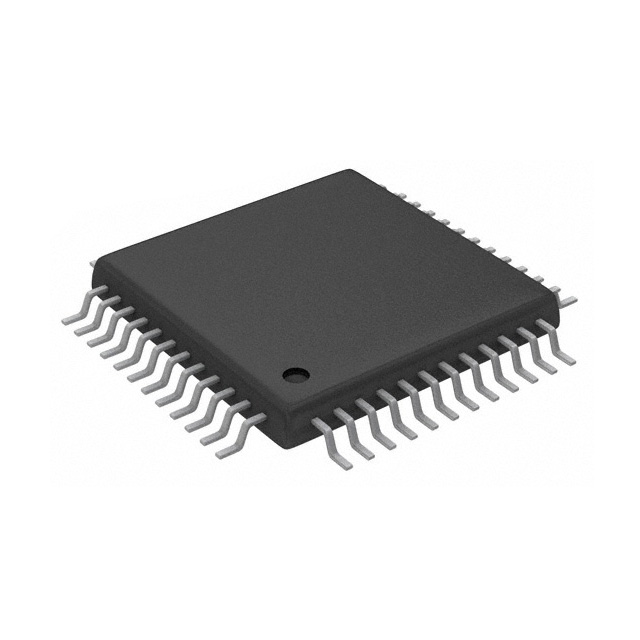

Bipolar Motor Driver Bi-CMOS PWM 48-LQFP (7x7)
