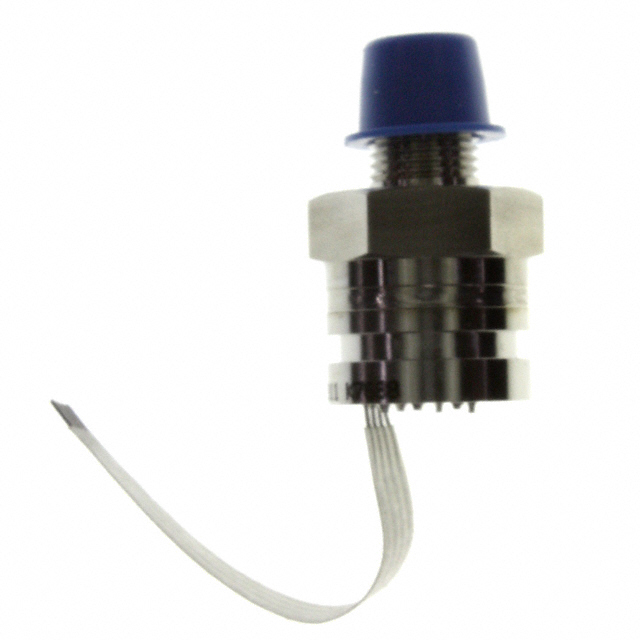

19C300PG4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 300PSIG 1/8"NPT 0.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

19C300PG4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 300PSIG 1/8"NPT 0.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19C300PG4K

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	900 PSI
Maximum Pressure [Max]	6205.28 kPa
Operating Pressure	300 PSI
Operating Pressure	2068.43 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	100 mV
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	Cylinder, Threaded
Port Size	0.125 "
Port Size	3.18 mm
Port Size	Male
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Flex Cable
Voltage - Supply	15 V

19C300 Series

Part	Accuracy	Output Type	Output [Max]	Features	Port Style	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Supply	Pressure Type	Port Size	Port Size	Port Size	Applications	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
Honeywell Sensing and Productivity Solutions 19C300PG3K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	No Port	Cylinder	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V	Vented Gauge
Honeywell Sensing and Productivity Solutions 19C300PA1K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	No Port	Cylinder	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V		Cell w/Body O-Ring
Honeywell Sensing and Productivity Solutions 19C300PV4K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	Threaded	Cylinder Threaded	-900 PSI	-6205.28 kPa	-300 PSI	-2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V	Vacuum	Male	0.125 "	3.18 mm
Honeywell Sensing and Productivity Solutions 19C300PG4K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	Threaded	Cylinder Threaded	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V	Vented Gauge	Male	0.125 "	3.18 mm	Board Mount
Honeywell Sensing and Productivity Solutions 19C300PG5L	0.25 %	Analog Voltage	100 mV	Temperature Compensated	Threaded	Cylinder Threaded	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable		Vented Gauge					NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions 19C300PV2K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	No Port	Cylinder	-900 PSI	-6205.28 kPa	-300 PSI	-2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V	Vacuum
Honeywell Sensing and Productivity Solutions 19C300PG2L	0.25 %	Analog Voltage	100 mV	Temperature Compensated	No Port	Cylinder	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable		Vented Gauge
Honeywell Sensing and Productivity Solutions 19C300PA6K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	Threaded	Cylinder Threaded	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V		Male UNF		0.4375 " 11.11 mm
Honeywell Sensing and Productivity Solutions 19C300PG6K	0.25 %	Analog Voltage	100 mV	Temperature Compensated	Threaded	Cylinder Threaded	900 PSI	6205.28 kPa	300 PSI	2068.43 kPa	125 °C	-40 °C	Flex Cable	15 V	Vented Gauge	Male UNF		0.4375 " 11.11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 359.10
		5	$ 302.96
		10	$ 298.08

Description

General part information

19C300 Series

Pressure Sensor 300PSI (2068.43kPa) Vented Gauge Male - 1/8" (3.18mm) NPT 0 mV ~ 100 mV (10V) Cylinder, Threaded
