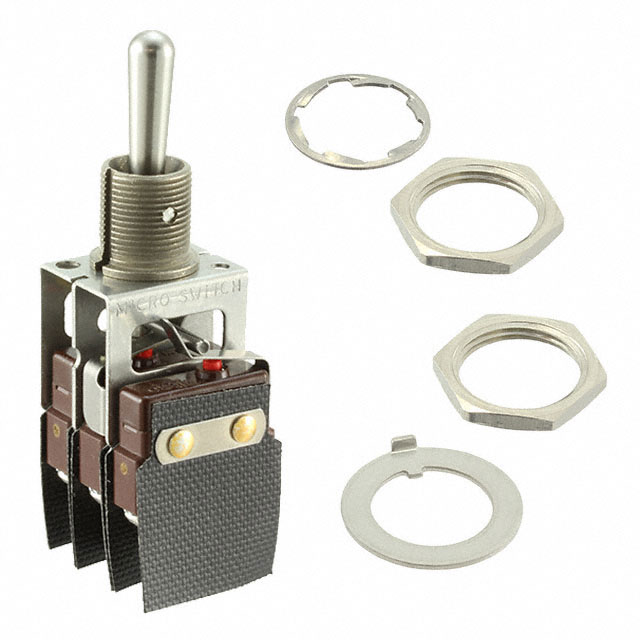

13AT4-S

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 3PDT 5A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 3PDT 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	13AT4-S

Actuator Length [x]	17.53 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	3PDT
Current Rating (Amps)	5 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

Part	Actuator Type	Bushing Thread	Switch Function	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Circuit	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Illumination	Actuator Length [x]
Honeywell Sensing and Productivity Solutions 13AT4-S	Standard Round	15/32-32	Mom-Off-Mom	12.4 mm	30 V	3PDT	250 V	5 A	Screw Terminal	Non-Illuminated	17.53 mm
Honeywell Sensing and Productivity Solutions 13AT475-T2	Flatted	15/32-32	On-Off-On	12.4 mm	28 V	3PDT	115 V	5 A	Solder Turret	Non-Illuminated	16.26 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 204.72

General part information

Toggle Switch 3PDT Panel Mount
