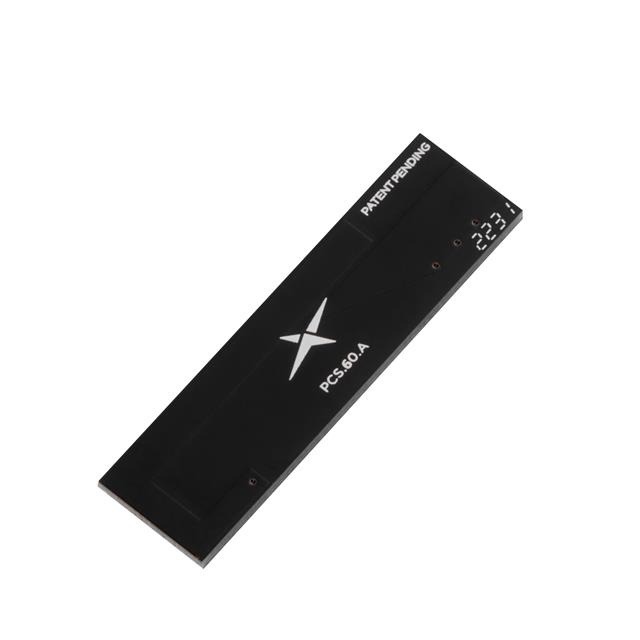

PCS.50.A

Active

TAOGLAS

RF ANTENNA, 1.71 TO 2.69GHZ, 3.23DBI ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 1.71 TO 2.69GHZ, 3.23DBI ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PCS.50.A

Antenna Type	Flat Bar
Applications	GNSS, 3G, Galileo, GPS, 5G, Beidou, 4G, GLONASS, LTE
Frequency (Center/Band)	773 MHz, 657.5 MHz, 3.55 GHz, 4.7 GHz, 840 MHz, 920 MHz, 5.4 GHz, 2.2 GHz, 1.581 GHz, 722 MHz
Frequency Group	Wide Band
Frequency Range [Max]	1.602 GHz, 5.8 GHz, 3.8 GHz, 960 MHz, 2.69 GHz
Frequency Range [Min]	617 MHz, 3.3 GHz, 4.4 GHz, 1.71 GHz, 1.56 GHz
Gain	4.71 dBi, -2.1 dBi, 3.99 dBi, 2.84 dBi, -2.6 dB, 2.81 dBi, 4.79 dBi, -1.2 dBi
Height (Max) [Max]	0.063 in
Height (Max) [Max]	1.6 mm
Mounting Type	Surface Mount
Number of Bands	10
Power - Max [Max]	5 W
RF Family/Standard	Cellular, Navigation

Part	Gain	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Mounting Type	Applications	Antenna Type	Frequency Group	Number of Bands	Frequency (Center/Band)	Power - Max [Max]
TAOGLAS PCS.50.A	-2.6 dB -2.1 dBi -1.2 dBi 2.81 dBi 2.84 dBi 3.99 dBi 4.71 dBi 4.79 dBi	1.602 GHz 2.69 GHz 3.8 GHz 5.8 GHz 960 MHz	1.56 GHz 1.71 GHz 3.3 GHz 4.4 GHz 617 MHz	0.063 in	1.6 mm	Cellular Navigation	Surface Mount	3G 4G 5G Beidou Galileo GLONASS GNSS GPS LTE	Flat Bar	Wide Band	10	1.581 GHz 2.2 GHz 3.55 GHz 4.7 GHz 5.4 GHz 657.5 MHz 722 MHz 773 MHz 840 MHz 920 MHz	5 W
