2SD1781A_R1_00001

Active

Panjit International Inc.

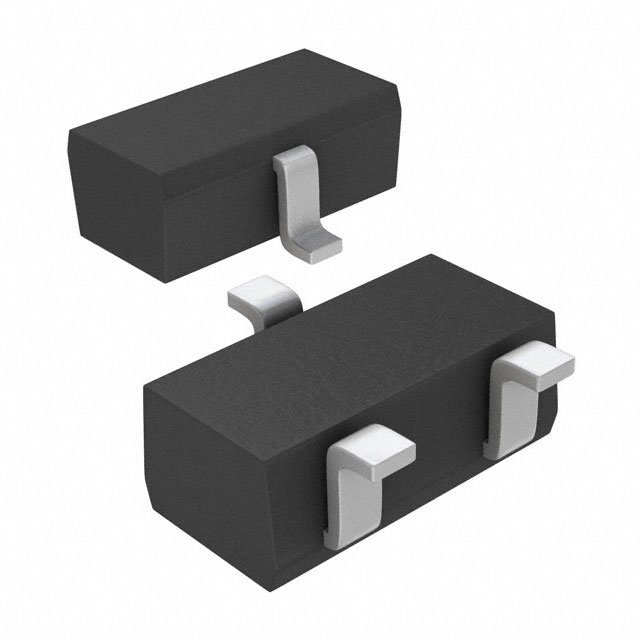

SOT-23, TRANSISTOR

Search across all available documentation for this part.

Active

Panjit International Inc.

SOT-23, TRANSISTOR

Technical Specifications

Parameters and characteristics for this part

Specification	2SD1781A_R1_00001

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	300 hFE
Frequency - Transition	250 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	1.25 W
Supplier Device Package	SOT-23
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	140 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector Cutoff (Max) [Max]	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]
Panjit International Inc. 2SD1781A_R1_00001	250 MHz	300 hFE	100 nA	NPN	50 V	140 mV	SC-59 SOT-23-3 TO-236-3	SOT-23	Surface Mount	-55 °C	150 °C	1.25 W	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 50 V 3 A 250MHz 1.25 W Surface Mount SOT-23
