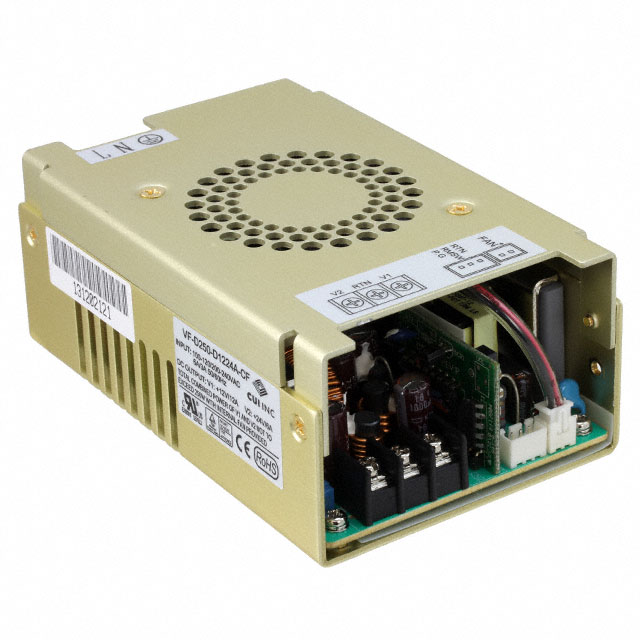

VF-D250-D1224A-CF

Active

CUI Inc.

AC/DC CONVERTER 12V 24V 250W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC CONVERTER 12V 24V 250W

Technical Specifications

Parameters and characteristics for this part

Specification	VF-D250-D1224A-CF

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	12 A
Current - Output 2 [custom]	6 A
Efficiency	70 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	250 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3.2 in
Size / Dimension [y]	81.3 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	61000-3-3, 60950-1, 61000-3-2, 55032 Class B, 55024, 62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	24 V

Part	Standard Number	Current - Output 1	Mounting Type	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Voltage - Output 1	Voltage - Isolation	Power (Watts)	Current - Output 2 [custom]	Applications	Efficiency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]
CUI Inc. VF-D250-D1224A-CF	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	12 A	Chassis Mount	2	Adjustable Output Remote On/Off	90 VAC	264 VAC	CB Scheme EN IEC SIQ TUV UL	12 V	3000 V	250 W	6 A	ITE (Commercial)	70 %	Enclosed	5 in	3.2 in	38.1 mm	1.5 "	81.3 mm	127 mm	24 V	70 °C	0 °C
