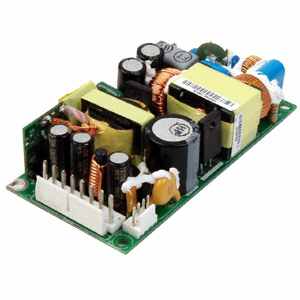

VMS-160-48

Obsolete

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 48V 3.33A 160W MEDICAL 14-PIN

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 48V 3.33A 160W MEDICAL 14-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-160-48

Applications	Medical
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	2.08 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	100 W
Power (Watts)	160 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	0.85 "
Size / Dimension [z]	21.6 mm
Standard Number	60950-1, 55024, 61000-3-3, 60601-1, 61000-3-2
Type	Open Frame
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	125 VDC, 85 VAC
Voltage - Isolation	5.656 kV
Voltage - Output 1	48 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Applications	Mounting Type	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Approval Agency	Power (Watts)	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Efficiency	Current - Output 1	Features	Power (Watts)
CUI Inc. VMS-160-15	-25 °C	70 °C	5.656 kV	Medical	Chassis Mount	15 V	85 VAC 125 VDC	264 VAC 373 VDC	1	CB Scheme EN IEC SIQ TUV UL	90 W 120 W	Open Frame	2 in	4 in	101.6 mm	0.85 "	50.8 mm	21.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	90 %	6 A	Adjustable Output PFC Standby Output Universal Input
CUI Inc. VMS-160-48	-25 °C	70 °C	5.656 kV	Medical	Chassis Mount	48 V	85 VAC 125 VDC	264 VAC 373 VDC	1	CB Scheme EN IEC SIQ TUV UL	100 W	Open Frame	2 in	4 in	101.6 mm	0.85 "	50.8 mm	21.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	90 %	2.08 A	Adjustable Output PFC Standby Output Universal Input	160 W
CUI Inc. VMS-160-5	-25 °C	70 °C	5.656 kV	Medical	Chassis Mount	5 V	85 VAC 125 VDC	264 VAC 373 VDC	1	CB Scheme EN IEC SIQ TUV UL	70 W 100 W	Open Frame	2 in	4 in	101.6 mm	0.85 "	50.8 mm	21.6 mm	55024 60601-1 60950-1 61000-3-2 61000-3-3	90 %	14 A	Adjustable Output PFC Standby Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC, 125 ~ 373 VDC Input
