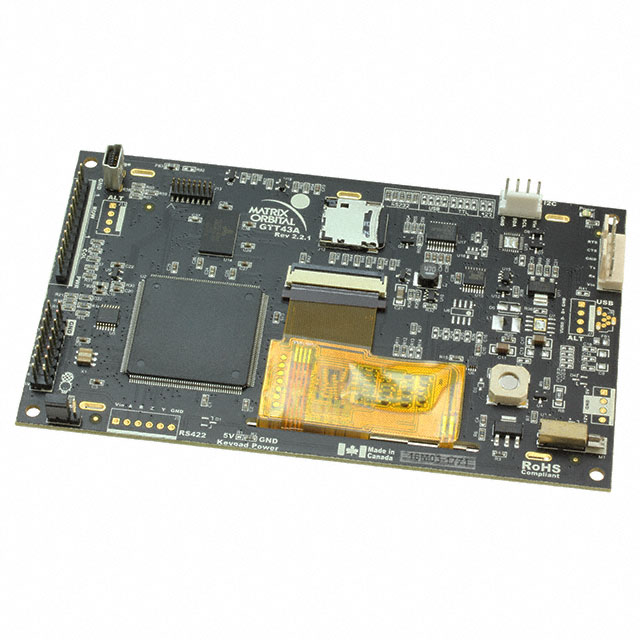

GTT43A-TPR-BLM-B0-H1-CU-V5

Unknown

Matrix Orbital

LCD DISPLAY TFT 4.3" 480X272

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGTT Series Protocol Datasheet

GTT43A-TPR-BLM-B0-H1-CU-V5

Unknown

Matrix Orbital

LCD DISPLAY TFT 4.3" 480X272

Deep-Dive with AI

DocumentsGTT Series Protocol Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GTT43A-TPR-BLM-B0-H1-CU-V5

Backlight	LED - White
Diagonal Screen Size	109.22 mm
Diagonal Screen Size	4.3 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.2 mm
Dot Pitch [y]	0.2 mm
Dot Pixels [x]	480
Dot Pixels [y]	272
Graphics Color	Green, Red, Blue
Interface	USB
Touchscreen	Resistive
Viewing Area [y]	98.7 mm
Viewing Area [z]	57.5 mm

GTT43A Series

Part	Display Type	Dot Pixels [y]	Dot Pixels [x]	Dot Pitch [x]	Dot Pitch [y]	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Viewing Area [y]	Viewing Area [z]	Touchscreen	Interface	Backlight
Matrix Orbital GTT43A-TPC-BLM-B0-H1-C4-VPT	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive
Matrix Orbital GTT43A-TPC-BLM-B0-H1-CU-VPT	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive	USB
Matrix Orbital GTT43A-TPC-BLM-B0-H1-C4-V5	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive
Matrix Orbital GTT43A-TPC-BLM-B0-H1-CT-VPT	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive	TTL
Matrix Orbital GTT43A-TPC-BLM-B0-H1-CS-VPT	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive	RS-232
Matrix Orbital GTT43A-TPR-BLM-B0-H1-CU-V5	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Resistive	USB	LED - White
Matrix Orbital GTT43A-TPR-BLM-B0-H1-C4-V5	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Resistive
Matrix Orbital GTT43A-TPC-BLM-B0-H1-CU-V5	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive	USB
Matrix Orbital GTT43A-TPR-BLM-B0-H1-CS-VPT	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Resistive	RS-232
Matrix Orbital GTT43A-TPC-BLM-B0-H1-CS-V5	TFT - Color	272	480	0.2 mm	0.2 mm	Blue Green Red	109.22 mm	4.3 in	Transmissive	98.7 mm	57.5 mm	Capacitive	RS-232

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 155.84

Description

General part information

GTT43A Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color USB 4.3" (109.22mm) 480 x 272

Documents

Technical documentation and resources

GTT Series Protocol

Datasheet
