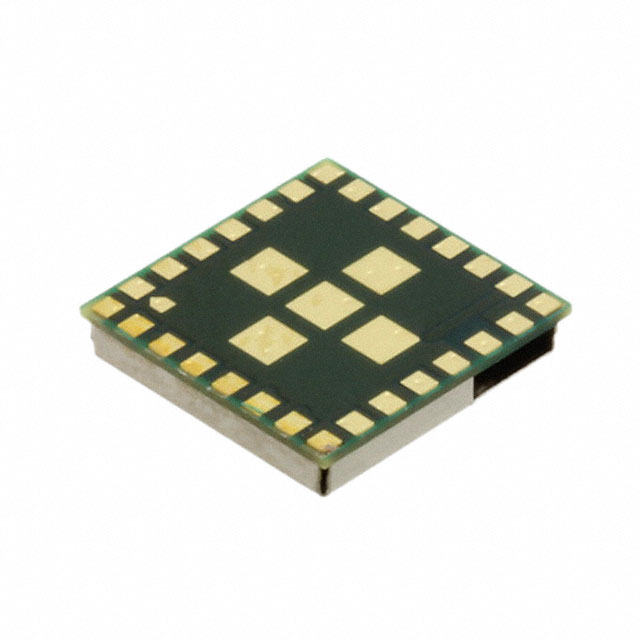

XCC2564MODNCMOET
UnknownTexas Instruments
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
Search across all available documentation for this part.
XCC2564MODNCMOET
UnknownTexas Instruments
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XCC2564MODNCMOET |
|---|---|
| Current - Receiving [Max] | 41.2 mA |
| Current - Receiving [Min] | 40.5 mA |
| Current - Transmitting [Max] | 41.2 mA |
| Current - Transmitting [Min] | 40.5 mA |
| Data Rate | 4 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GMSK, DPSK, GFSK, DQPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 33-SMD Module |
| Power - Output | 10 dBm |
| Protocol | Bluetooth v4.0 Dual Mode |
| RF Family/Standard | Bluetooth |
| Sensitivity | -93 dBm |
| Serial Interfaces | UART |
| Utilized IC / Part | CC2564 |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 8.28 | |
| 500 | $ 7.53 | |||
| 750 | $ 7.28 | |||
| 1250 | $ 6.78 | |||
Description
General part information
XCC25 Series
Bluetooth Bluetooth v4.0 Dual Mode Transceiver Module 2.4GHz Surface Mount
Documents
Technical documentation and resources
No documents available
