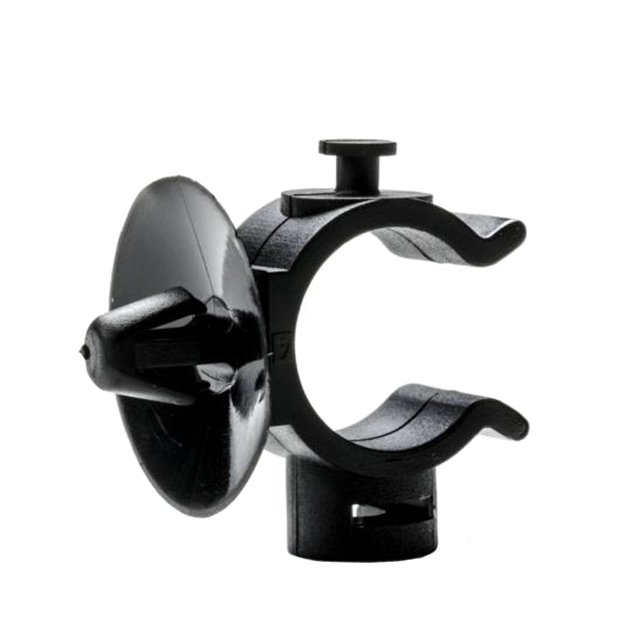

151-14500

Active

HELLERMANNTYTON

CBL CLIP U-TYPE BLACK ARROWHEAD

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP U-TYPE BLACK ARROWHEAD

Technical Specifications

Parameters and characteristics for this part

Specification	151-14500

Color	Black
Features	Impact Resistant, Connectable
Length [x]	27.2 mm
Length [x]	1.071 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Cupped, Arrowhead
Opening Size [Max] [custom]	0.579 in
Opening Size [Max] [custom]	14.7 mm
Opening Size [Min] [custom]	13.7 mm
Opening Size [Min] [custom]	0.539 in
Panel Hole Size	0.248 in
Panel Hole Size	6.3 mm
Panel Thickness [Max]	0.063 in
Panel Thickness [Max]	1.6 mm
Panel Thickness [Min]	0.024 in
Panel Thickness [Min]	0.6 mm
Screw Size	0.197 in
Screw Size	5 mm
Type Attributes	Open
Width [y]	0.394 in
Width [y]	10 mm

Part	Opening Size [Max] [z]	Opening Size [Min] [z]	Width [y]	Width [y]	Features	Color	Length	Length	Screw Size	Screw Size	Material	Height [z]	Height [z]	Type Attributes	Material Flammability Rating	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Mounting Type	Panel Hole Size	Panel Hole Size	Length [x]	Length [x]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Opening Size [Min] [z]	Opening Size [Max] [z]
HELLERMANNTYTON 151-14400	0.492 in 12.5 mm	0.335 in 8.5 mm	0.394 in	10 mm	Connectable Impact Resistant	Black	0.866 "	22 mm	0.197 in	5 mm	Polyamide (PA66) Nylon 6/6	0.59 "	14.99 mm	Open	UL94 HB
HELLERMANNTYTON 151-14500			0.394 in	10 mm	Connectable Impact Resistant	Black			0.197 in	5 mm	Polyamide (PA66) Nylon 6/6			Open	UL94 HB	13.7 mm	0.579 in	14.7 mm	0.539 in	Arrowhead Cupped	0.248 in	6.3 mm	27.2 mm	1.071 in	0.024 in	0.063 in	0.6 mm	1.6 mm
HELLERMANNTYTON 151-14130			0.394 in	10 mm	Connectable	Black	1.02 in	25.91 mm	0.197 in	5 mm	Polyamide (PA66) Nylon 6/6	0.827 in	21 mm	Open	UL94 V-2	12.5 mm	0.531 in	13.5 mm	0.492 in	Arrowhead Cupped	0.248 in	6.3 mm			0.024 in	0.063 in	0.6 mm	1.6 mm
HELLERMANNTYTON 151-14601	0.984 in	0.827 in	0.394 in	10 mm	Connectable	Black	1.445 in	36.7 mm	0.197 in	5 mm	Polyamide (PA66) Nylon 6/6	1.339 in	34 mm	Open	UL94 V-2					Arrowhead Cupped	0.248 in	6.3 mm			0.024 in	0.063 in	0.6 mm	1.6 mm	21 mm	25 mm
