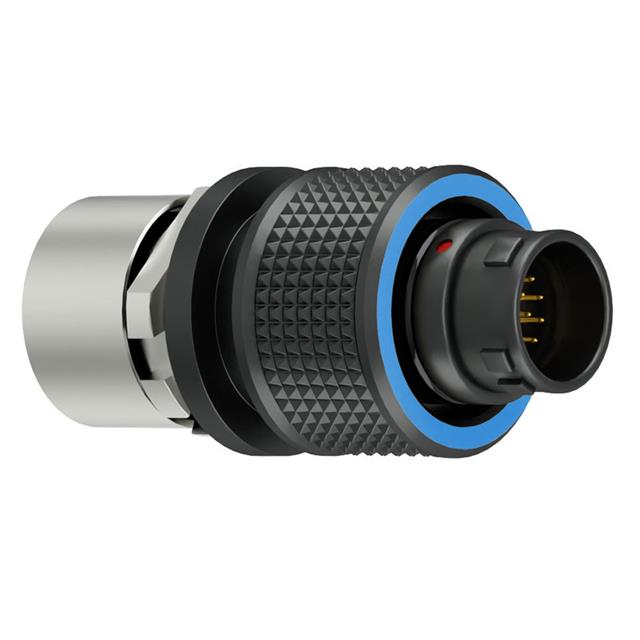

C10WCM-P12XMM0-0000

Active

ODU

ODU AMC HD PLUG, SCREW-LOCK, STY

Search across all available documentation for this part.

Active

ODU

ODU AMC HD PLUG, SCREW-LOCK, STY

Technical Specifications

Parameters and characteristics for this part

Specification	C10WCM-P12XMM0-0000

Applications	Medical, Industrial, Military
Backshell Material, Plating	Ruthenium over Electroless Nickel, Brass
Cable Opening [custom]	0.256 in
Cable Opening [custom]	6.5 mm
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A, 1 A
Fastening Type	Threaded, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	C
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded

Part	Number of Positions	Contact Material	Shell Size - Insert	Mounting Type	Shielding	Material Flammability Rating	Backshell Material, Plating	Ingress Protection	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Features	Orientation	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Material	Current Rating (Amps)	Color	Contact Finish - Mating	Connector Type	Applications
ODU C10WCM-P12XMM0-0000	12	Copper Alloy	0	Free Hanging (In-Line)	Shielded	UL94 V-0	Brass Ruthenium over Electroless Nickel	IP68 - Dust Tight Waterproof	Metal	0.256 in	6.5 mm	Push-Pull Threaded	Backshell	C	Polyetheretherketone (PEEK)	1.27 µm	50 µin	-51 °C	125 °C	Ruthenium over Electroless Nickel	Brass	1 A 5 A	Black Silver	Gold	Male Pins Plug	Industrial Medical Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (10 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
