CDB43L22

Obsolete

Cirrus Logic Inc.

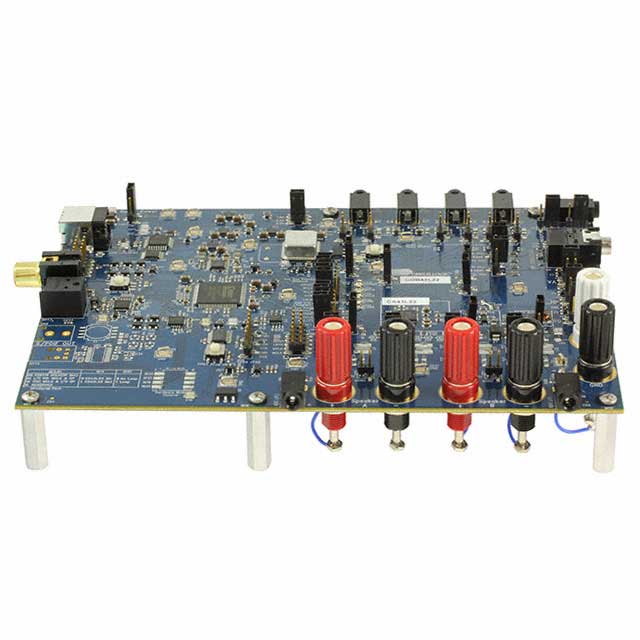

EVAL BOARD FOR CS43L22

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS43L22

Technical Specifications

Parameters and characteristics for this part

Part	Resolution (Bits)	Number of Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Voltage Supply Source	Package / Case	Sampling Rate (Per Second)	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Utilized IC / Part	Number of DAC's	Supplied Contents	Number of Bits	DAC Type
Cirrus Logic Inc. CS43L22-CNZ	24 b	2	85 °C	-40 °C	I2S	Analog and Digital	40-VFQFN Exposed Pad	96 kHz	Surface Mount	40-QFN (6x6)	2.63 V	1.65 V	Audio DAC
Cirrus Logic Inc. CDB43L22					Serial			96 kHz						CS43L22	1	Board(s)	24	Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

CS43L22 24 Bit 96k Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
