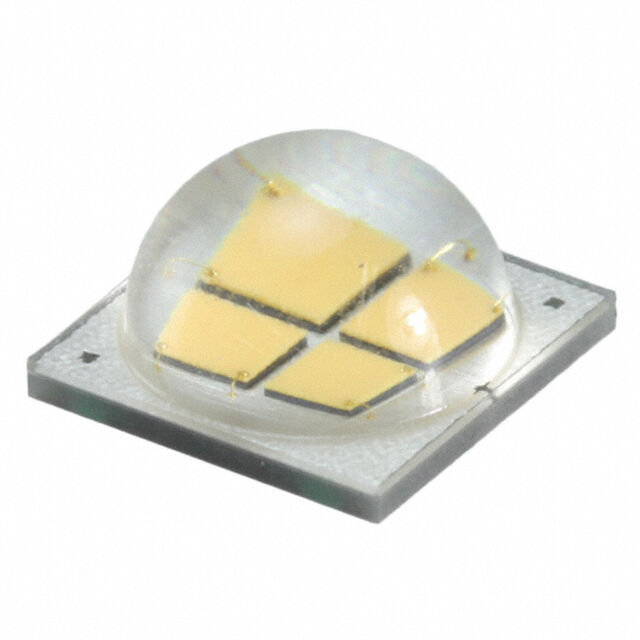

MKRAWT-02-0000-0B0HG450H

Obsolete

Cree LED

LED XLAMP COOL WHITE 5000K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MKRAWT-02-0000-0B0HG450H

Obsolete

Cree LED

LED XLAMP COOL WHITE 5000K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MKRAWT-02-0000-0B0HG450H

CCT (K)	5000 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	2.5 A
Flux @ 85°C, Current - Test	870 lm
Lumens/Watt @ Current - Test	104 lm/W
Mounting Type	Surface Mount
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Thermal Resistance of Package [diameter]	1.7 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V

MKRAWT Series

...

Part	CCT (K)	Current - Max [Max]	Color	Thermal Resistance of Package [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Mounting Type	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]
Cree LED MKRAWT-02-0000-0B0HH230F	3000 K	2.5 A	Warm White	1.7 °C/W	6 V	120 °	Surface Mount	111 lm/W	80	7 mm	0.276 in	0.276 "	7 mm
Cree LED MKRAWT-00-0000-0D0HH440F	4000 K	1.25 A	Neutral White	1.7 °C/W	12 V	120 °	Surface Mount	120 lm/W	80	7 mm	0.276 in	0.276 "	7 mm	1040 lm	1005 lm	970 lm
Cree LED MKRAWT-02-0000-0D0UE20E8	2700 K	1.25 A	Warm White	1.7 °C/W	12 V	120 °	Surface Mount	73 lm/W	90	7 mm	0.276 in	0.276 "	7 mm	635 lm	613 lm	590 lm
Cree LED MKRAWT-02-0000-0B0HG450H	5000 K	2.5 A	Cool White	1.7 °C/W	6 V	120 °	Surface Mount	104 lm/W	80	7 mm	0.276 in	0.276 "	7 mm		870 lm
Cree LED MKRAWT-00-0000-0B0BG40E6	3500 K	2.5 A	Warm White	1.7 °C/W	6 V	120 °	Surface Mount	104 lm/W	70	7 mm	0.276 in	0.276 "	7 mm		870 lm
Cree LED MKRAWT-00-0000-0D0HH40E4		1.25 A	Neutral White	1.7 °C/W	12 V	120 °	Surface Mount	120 lm/W	80	7 mm	0.276 in	0.276 "	7 mm	1040 lm	1005 lm	970 lm
Cree LED MKRAWT-02-0000-0D0HG230F	3000 K	1.25 A	Warm White	1.7 °C/W	12 V	120 °	Surface Mount	96 lm/W	80	7 mm	0.276 in	0.276 "	7 mm		810 lm
Cree LED MKRAWT-00-0000-0B0HG235F		2.5 A	Warm White	1.7 °C/W	6 V	120 °	Surface Mount	96 lm/W	80	7 mm	0.276 in	0.276 "	7 mm		810 lm
Cree LED MKRAWT-02-0000-0B0HH250H	5000 K	2.5 A	Cool White	1.7 °C/W	6 V	120 °	Surface Mount	111 lm/W	80	7 mm	0.276 in	0.276 "	7 mm
Cree LED MKRAWT-00-0000-0D00J20E4		1.25 A	Neutral White	1.7 °C/W	12 V	120 °	Surface Mount	129 lm/W		7 mm	0.276 in	0.276 "	7 mm		1080 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MKRAWT Series

LED Lighting XLamp® MK-R White, Cool 5000K 2-Step MacAdam Ellipse 6V 1.4A 120° 2828 (7070 Metric)
