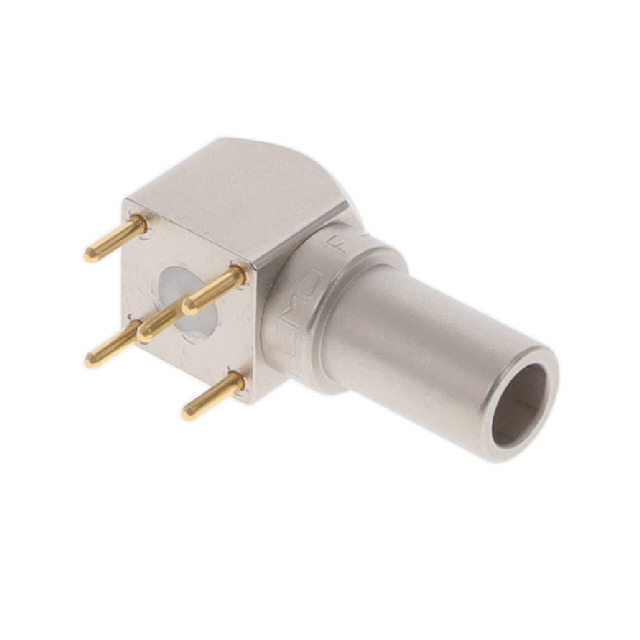

FPL.00.250.NTD
ActiveLEMO
CONN NIMCAMAC PLUG R/A 50OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPL.00.250.NTD
ActiveLEMO
CONN NIMCAMAC PLUG R/A 50OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FPL.00.250.NTD |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | NIM-CAMAC CD/N 549 |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Ingress Protection | IP50 |
| Mating Cycles | 5000 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 260 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 700 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.48 | |
| 10 | $ 19.68 | |||
| 25 | $ 18.83 | |||
| 50 | $ 18.23 | |||
| 100 | $ 17.62 | |||
| 250 | $ 16.65 | |||
| 500 | $ 16.16 | |||
Description
General part information
FPL.00.250 Series
NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
