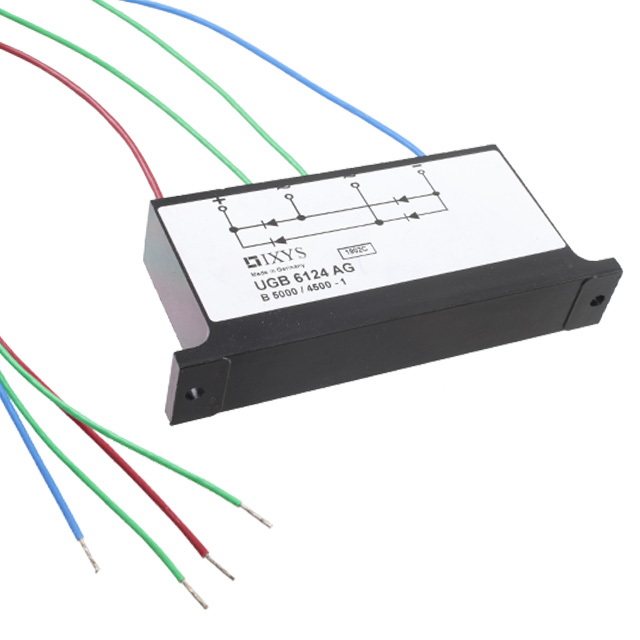

UGB6124AG

Active

IXYS

BRIDGE RECT 1P 10.5KV 1A UGB-1

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 10.5KV 1A UGB-1

Technical Specifications

Parameters and characteristics for this part

Specification	UGB6124AG

Current - Average Rectified (Io)	1 A
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature	150 °C
Package / Case	UGB-1
Technology	Standard
Voltage - Peak Reverse (Max) [Max]	10.5 kV

Part	Current - Average Rectified (Io)	Operating Temperature	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Diode Type	Technology	Package / Case
IXYS UGB6124AG	1 A	150 °C	10.5 kV	Chassis Mount	Single Phase	Standard	UGB-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 172.02

General part information

Bridge Rectifier Single Phase Standard 10.5 kV Chassis Mount UGB-1

Technical documentation and resources
