AH16649-A - AH1 Series

AH16649-A

Active
Panasonic Electric Works

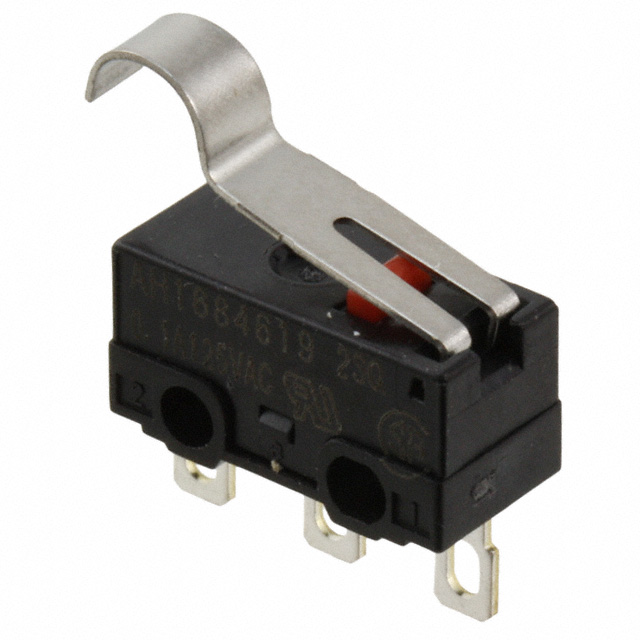

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAH1 Series DatasheetDatasheet+1
AH16649-A - AH1 Series

AH16649-A

Active
Panasonic Electric Works

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsAH1 Series DatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationAH16649-A
Actuator TypeSimulated Roller, Lever
CircuitSPDT
Current Rating (Amps)2 A, 3 A
Differential Travel0.5 mm
Differential Travel0.02 in
Electrical Life30000 Cycles
Mechanical Life500000 Cycles
Mounting TypeChassis Mount
Operating Force55 gf
Operating Position9.5 mm
Operating Position0.374 in
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Overtravel0.02 in
Overtravel0.5 mm
Pretravel2.1 mm
Pretravel0.083 in
Release Force4.079 gf
Switch FunctionOn-Mom
Termination StyleSolder Lug
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 50$ 1.46

Description

General part information

AH16649 Series

Switch SPDT Chassis Mount
