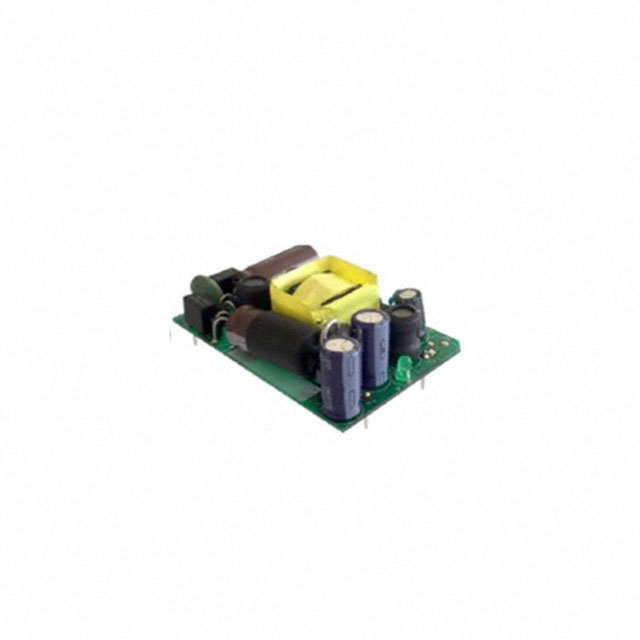

EPM15-090-BP-0F0

Active

Astrodyne TDI

AC/DC CONVERTER 9V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPM15-090-BP-0F0

Active

Astrodyne TDI

AC/DC CONVERTER 9V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPM15-090-BP-0F0

Applications	Medical
Approval Agency	cTUVus, TUV, CB, CE
Current - Output (Max) [Max]	1.33 A
Efficiency	70 %
Features	Universal Input
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Package / Case	4-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	62.5 mm
Size / Dimension [x]	2.46 "
Size / Dimension [y]	42.2 mm
Size / Dimension [y]	1.66 "
Size / Dimension [z]	0.91 in
Size / Dimension [z]	23 mm
Type	Open Frame
Voltage - Input [Max]	275 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output 1	9 V

EPM15 Series

Part	Approval Agency	Voltage - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Current - Output 1	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Isolation	Number of Outputs	Features	Standard Number	Package / Case	Package / Case	Current - Output (Max) [Max]
Astrodyne TDI EPM15-033-BC-0F0	CB CE cTUVus TUV	3.3 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	10 W	3 A	Medical	54.9 mm	95.8 mm	25.4 mm	3.77 "	2.16 "	1 "	Chassis Mount	4000 V	1	Universal Input	60601-1
Astrodyne TDI EPM15-240-BE-0F0	CB CE cTUVus TUV	24 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W		Medical	45 mm	65 mm	20 mm	2.56 in	1.77 "	0.79 in	Through Hole		1	Universal Input		4 Lead	5-DIP Module	630 mA
Astrodyne TDI EPM15-033-BE-0F0	CB CE cTUVus TUV	3.3 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	10 W		Medical	45 mm	65 mm	20 mm	2.56 in	1.77 "	0.79 in	Through Hole		1	Universal Input		4 Lead	5-DIP Module	3 A
Astrodyne TDI EPM15-180-BC-0F0	CB CE cTUVus TUV	18 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W	830 mA	Medical	54.9 mm	95.8 mm	25.4 mm	3.77 "	2.16 "	1 "	Chassis Mount	4000 V	1	Universal Input	60601-1
Astrodyne TDI EPM15-180-BE-0F0	CB CE cTUVus TUV	18 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W		Medical	45 mm	65 mm	20 mm	2.56 in	1.77 "	0.79 in	Through Hole		1	Universal Input		4 Lead	5-DIP Module	830 mA
Astrodyne TDI EPM15-090-BC-0F0	CB CE cTUVus TUV	9 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W	1.67 A	Medical	54.9 mm	95.8 mm	25.4 mm	3.77 "	2.16 "	1 "	Chassis Mount	4000 V	1	Universal Input	60601-1
Astrodyne TDI EPM15-090-BP-0F0	CB CE cTUVus TUV	9 V	Open Frame	80 VAC	275 VAC	70 %	-20 °C	70 °C	12 W		Medical	42.2 mm	62.5 mm	23 mm	2.46 "	1.66 "	0.91 in	Through Hole		1	Universal Input			4-DIP Module	1.33 A
Astrodyne TDI EPM15-150-BC-0F0	CB CE cTUVus TUV	15 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W	1 A	Medical	54.9 mm	95.8 mm	25.4 mm	3.77 "	2.16 "	1 "	Chassis Mount	4000 V	1	Universal Input	60601-1
Astrodyne TDI EPM15-050-BE-0F0	CB CE cTUVus TUV	5 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W		Medical	45 mm	65 mm	20 mm	2.56 in	1.77 "	0.79 in	Through Hole		1	Universal Input		4 Lead	5-DIP Module	3 A
Astrodyne TDI EPM15-120-BE-0F0	CB CE cTUVus TUV	12 V	Enclosed	80 VAC	275 VAC	70 %	-20 °C	70 °C	15 W		Medical	45 mm	65 mm	20 mm	2.56 in	1.77 "	0.79 in	Through Hole		1	Universal Input		4 Lead	5-DIP Module	1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 29.79
		10	$ 27.08
		25	$ 24.62

Description

General part information

EPM15 Series

Open Frame AC DC Converters 1 Output 9V 1.33A 80 ~ 275 VAC Input
