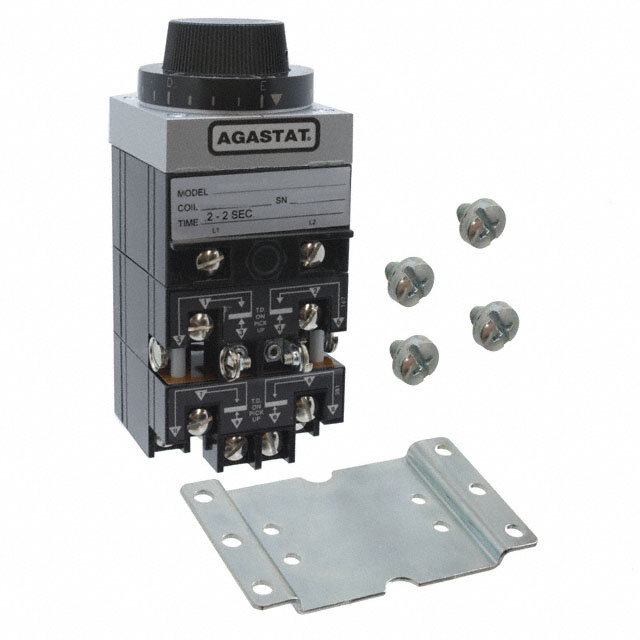

7014PA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 2SEC 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 7000 AGASTAT Series Instr Sheet

7014PA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 2SEC 10A 240V

Deep-Dive with AI

DocumentsDatasheet 7000 AGASTAT Series Instr Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7014PA

Circuit	4 Form C
Circuit	4PDT
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	2 Sec
Delay Time [Min]	0.2 Sec
Function	On-Delay
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	125 V

1423161 Series

Part	Delay Time [Min]	Delay Time [Max]	Circuit	Circuit	Relay Type	Termination Style	Voltage - Supply	Function	Timing Adjustment Method	Contact Rating @ Voltage	Timing Initiate Method
TE Connectivity Aerospace, Defense and Marine 7014PE	20 Sec	200 Sec	4 Form C	4PDT	Mechanical Relay	Screw Terminal	125 V	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 4-1423161-1	0.2 Sec	2 Sec	4 Form C	4PDT	Mechanical Relay	Screw Terminal	96 VDC	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 1-1423161-7	1.5 Sec	15 Sec		DPDT (2 Form C)	Mechanical Relay	Screw Terminal	120 VAC	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 7014OC	1.5 Sec	15 Sec	4 Form C	4PDT	Mechanical Relay	Screw Terminal	24 VDC	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 5-1423161-6
TE Connectivity Aerospace, Defense and Marine 7014PA	0.2 Sec	2 Sec	4 Form C	4PDT	Mechanical Relay	Screw Terminal	125 V	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 2-1423161-1	1.5 Min	15 Min	4 Form C	4PDT	Mechanical Relay	Screw Terminal	120 VAC	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 7014PF	1 Min	10 Min	4 Form C	4PDT	Mechanical Relay	Screw Terminal	125 V	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 7014MCI1	1.5 Sec	15 Sec	4 Form C	4PDT	Mechanical Relay	Screw Terminal	28 V	On-Delay	Hand Dial	10 A 240 VAC	Input Voltage
TE Connectivity Aerospace, Defense and Marine 4-1423161-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 812.61

Description

General part information

1423161 Series

On-Delay Time Delay Relay 4PDT (4 Form C) 0.2 Sec ~ 2 Sec Delay 10A @ 240VAC Panel Mount
