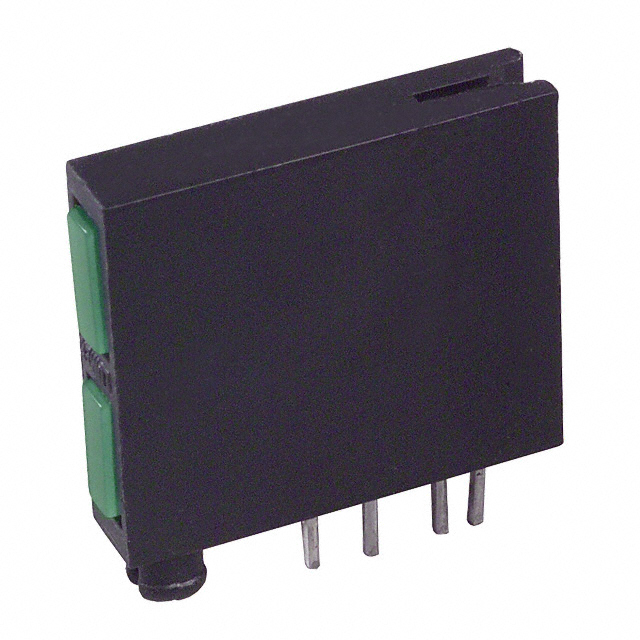

SSF-LXH22573GGD

Active

Lumex Opto/Components Inc.

LED 2X5MM RA 2-HI GRN/GRN PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH22573GGD

Active

Lumex Opto/Components Inc.

LED 2X5MM RA 2-HI GRN/GRN PCMNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH22573GGD

Color	Green (x 2)
Configuration	SIP, Bar - 2 High
Lens Size [x]	5 mm
Lens Size [y]	2 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	110 °
Wavelength - Peak	565 nm

SSF-LXH22573 Series

Part	Configuration	Viewing Angle	Mounting Type	Wavelength - Peak	Lens Size [y]	Lens Size [x]	Color	Lens Style	Lens Type	Millicandela Rating	Voltage Rating
Lumex Opto/Components Inc. SSF-LXH22573GGD	Bar - 2 High SIP	110 °	Through Hole Right Angle	565 nm	2 mm	5 mm	Green (x 2)	Rectangle with Flat Top	Diffused Tinted	10 mcd
Lumex Opto/Components Inc. SSF-LXH22573IID	Bar - 2 High SIP	110 °	Through Hole Right Angle	635 nm	2 mm	5 mm	Red	Rectangle with Flat Top	Diffused Tinted	10 mcd	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH22573 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 High, SIP Green (x 2) Diffused, Tinted 2.2V 20mA Rectangle with Flat Top 5.00mm x 2.00mm Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
