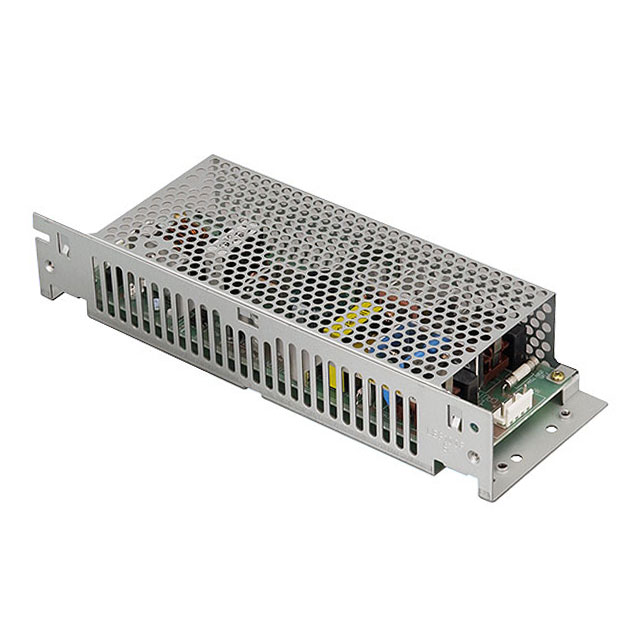

LEP100F-24-SN

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V 100W

Search across all available documentation for this part.

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	LEP100F-24-SN

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	4.2 A
Efficiency	84 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	8.74 "
Size / Dimension [x]	222 mm
Size / Dimension [y]	74.9 mm
Size / Dimension [y]	2.95 in
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35.1 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type	Current - Output 1	Mounting Type	Voltage - Isolation	Applications	Voltage - Output 1	Number of Outputs	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Power (Watts)
Cosel USA, Inc. LEP100F-24-SNT	8.74 "	1.38 in	35.1 mm	74.9 mm	222 mm	2.95 in	84 %	-10 °C	158 °F	Enclosed	4.2 A	Chassis Mount	3000 V	ITE (Commercial)	24 V	1	CE cURus TUV
Cosel USA, Inc. LEP100F-48	8.74 "	1.38 in	35.1 mm	74.9 mm	222 mm	2.95 in	85 %			Open Frame	2.1 A	Chassis Mount	3000 V	ITE (Commercial)	48 V	1	CE cURus TUV	-10 °C	70 °C	DC Input Capable Universal Input	100 W
Cosel USA, Inc. LEP100F-24-SN	8.74 "	1.38 in	35.1 mm	74.9 mm	222 mm	2.95 in	84 %			Enclosed	4.2 A	Chassis Mount	3000 V	ITE (Commercial)	24 V	1	CE cURus TUV	-10 °C	70 °C	DC Input Capable Universal Input	100 W
Cosel USA, Inc. LEP100F-48-SNT	8.74 "	1.38 in	35.1 mm	74.9 mm	222 mm	2.95 in	85 %	-10 °C	158 °F	Enclosed	2.1 A	Chassis Mount	3000 V	ITE (Commercial)	48 V	1	CE cURus TUV
Cosel USA, Inc. LEP100F-36	8.74 "	1.38 in	35.1 mm	74.9 mm	222 mm	2.95 in	85 %	-10 °C	158 °F	Open Frame	2.8 A	Chassis Mount	3000 V	ITE (Commercial)	36 V	1	CE cURus TUV
Cosel USA, Inc. LEP100F-36-ST	8.74 "	1.38 in	35.1 mm	74.9 mm	222 mm	2.95 in	85 %	-10 °C	158 °F	Open Frame	2.8 A	Chassis Mount	3000 V	ITE (Commercial)	36 V	1	CE cURus TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
