181-15513

Active

HELLERMANNTYTON

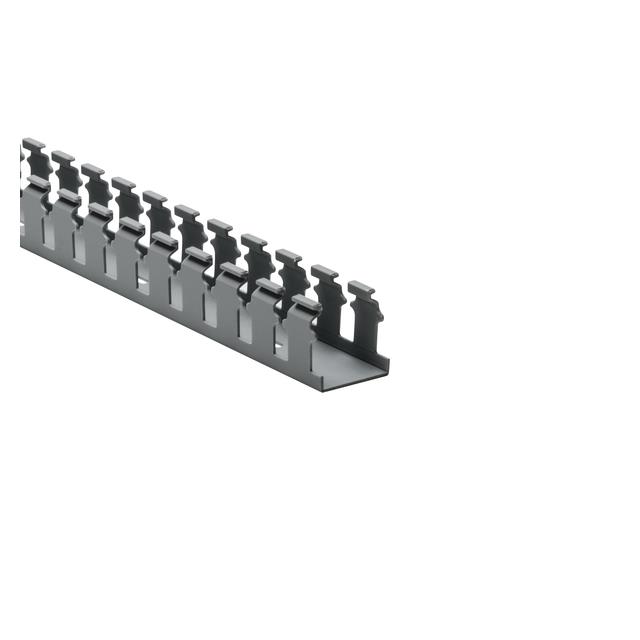

SLOTTED WALL WIRING DUCT, 1.5" X 1.5", ADHESIVE, PVC, GRAY, 120FT/CARTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

181-15513

Active

HELLERMANNTYTON

SLOTTED WALL WIRING DUCT, 1.5" X 1.5", ADHESIVE, PVC, GRAY, 120FT/CARTON

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	181-15513

Color	Gray
Features	Pre-Punched Mounting Holes, Self Extinguishing
Height [z]	1.506 in
Height [z]	38.25 mm
Length	6 ft
Length	1.83 m
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Adhesive, Screw
Width	38.1 mm
Width [x]	1.5 in
Wire Duct Type	Slotted (Raceway), Base

181-15 Series

Pushbutton Switches PB LIGHTED 125V GLOSS/CLR LENS

Part	Length	Length	Features	Height [z]	Height [z]	Mounting Type	Width [x]	Width	Color	Material	Wire Duct Type
HELLERMANNTYTON 181-15210	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	51 mm	2.008 in	Adhesive Screw	1.5 in	38.1 mm	Gray	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)
HELLERMANNTYTON 181-15503	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	38.25 mm	1.506 in	Screw	1.5 in	38.1 mm	White	Poly-Vinyl Chloride (PVC)
HELLERMANNTYTON 181-15209	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	51 mm	2.008 in	Screw	1.5 in	38.1 mm	White	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)
HELLERMANNTYTON 181-15302	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	76.43 mm	3.009 in	Screw	1.5 in	38.1 mm	Gray	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)
HELLERMANNTYTON 181-15212	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	51 mm	2.008 in	Adhesive Screw	1.5 in	38.1 mm	White	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)
HELLERMANNTYTON 181-15207	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	51 mm	2.008 in	Screw	1.5 in	38.1 mm	Gray	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)
HELLERMANNTYTON 181-15513	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	38.25 mm	1.506 in	Adhesive Screw	1.5 in	38.1 mm	Gray	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)
HELLERMANNTYTON 181-15102	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	25.5 mm	1.004 in	Screw	1.5 in	38.1 mm	White	Poly-Vinyl Chloride (PVC)
HELLERMANNTYTON 181-15200	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	51 mm	2.008 in	Screw	1.5 in	38.1 mm	Gray	Poly-Vinyl Chloride (PVC)
HELLERMANNTYTON 181-15108	6 ft	1.83 m	Pre-Punched Mounting Holes Self Extinguishing	25.5 mm	1.004 in	Adhesive Screw	1.5 in	38.1 mm	Gray	Poly-Vinyl Chloride (PVC)	Base Slotted (Raceway)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 37.23
Newark	1 Foot	100	$ 8.16
		250	$ 7.48
		500	$ 6.94
		1000	$ 6.53
