6382-5SG-311

Active

Conxall/Switchcraft

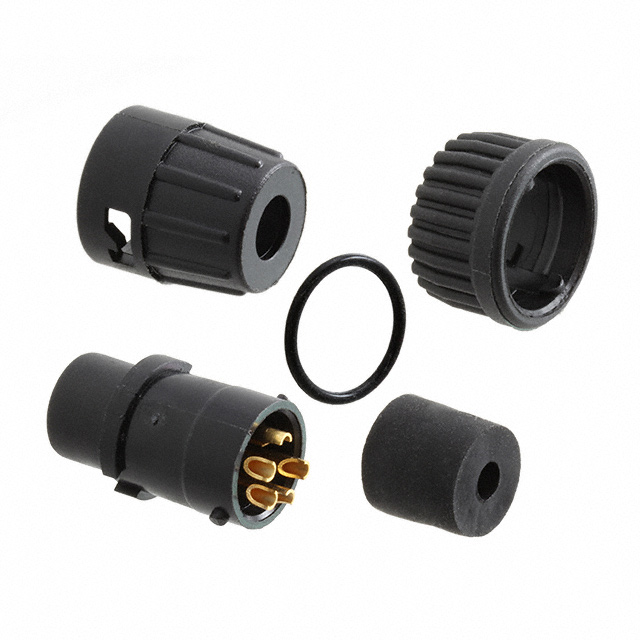

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6382-5SG-311

Active

Conxall/Switchcraft

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6382-5SG-311

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

6382-5SG Series

Part	Shielding	Ingress Protection	Current Rating (Amps)	Contact Material	Fastening Type	Contact Finish - Mating	Voltage Rating	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Features	Applications	Backshell Material, Plating	Color	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6382-5SG-315	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)	0.15 in 0.17 in	3.81 mm 4.32 mm	Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed
Conxall/Switchcraft 6382-5SG-513	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)	0.13 in 0.15 in	3.3 mm 3.81 mm	Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed
Conxall/Switchcraft 6382-5SG-311	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)			Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed	2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 6382-5SG-318	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)			Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6382-5SG-519	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)			Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed								0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6382-5SG-522	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)			Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed								0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6382-5SG-516	Unshielded	Weathertight	Varies by Wire Gauge	Brass	Bayonet Lock	Gold	600 V	Free Hanging (In-Line)			Backshell	Automotive Communication Systems Instrumentation	Nylon Polyamide (PA)	Black	Plastic	Female Sockets Plug	-40 °C	115 °C	Keyed				4.06 mm	0.16 in	0.18 in	4.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.20
		10	$ 14.62
		25	$ 13.70
		50	$ 13.05
		100	$ 12.42
		300	$ 11.50
		500	$ 11.09

Description

General part information

6382-5SG Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
