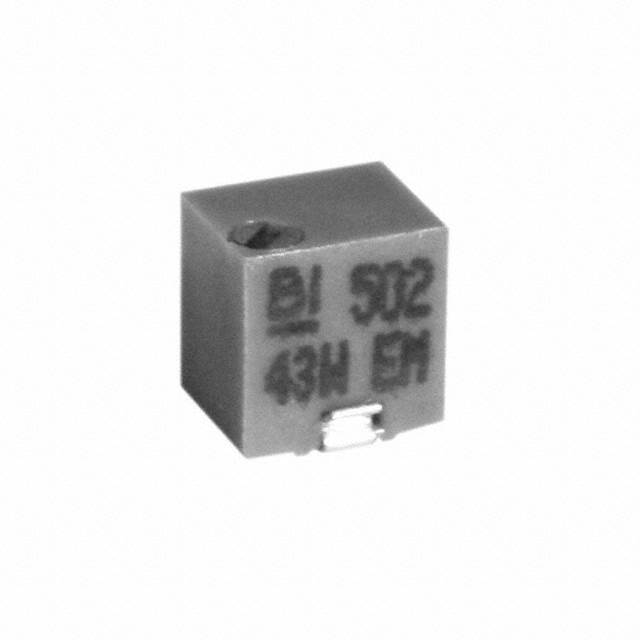

43WR10LFTR
ActiveTT Electronics/BI
TRIMMER 10 OHM 0.125W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43WR10LFTR
ActiveTT Electronics/BI
TRIMMER 10 OHM 0.125W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43WR10LFTR |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 11 |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 10 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 4.1 mm |
| Size / Dimension [x] | 0.161 in |
| Size / Dimension [y] | 0.125 in |
| Size / Dimension [y] | 3.18 mm |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.21 | |
| 10 | $ 5.69 | |||
| 25 | $ 5.07 | |||
| 50 | $ 4.76 | |||
| 100 | $ 4.35 | |||
| 250 | $ 3.52 | |||
| Digi-Reel® | 1 | $ 6.21 | ||
| 10 | $ 5.69 | |||
| 25 | $ 5.07 | |||
| 50 | $ 4.76 | |||
| 100 | $ 4.35 | |||
| 250 | $ 3.52 | |||
| Tape & Reel (TR) | 500 | $ 3.31 | ||
| 1000 | $ 3.11 | |||
| 2500 | $ 2.90 | |||
Description
General part information
43WR Series
10 Ohms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Documents
Technical documentation and resources
