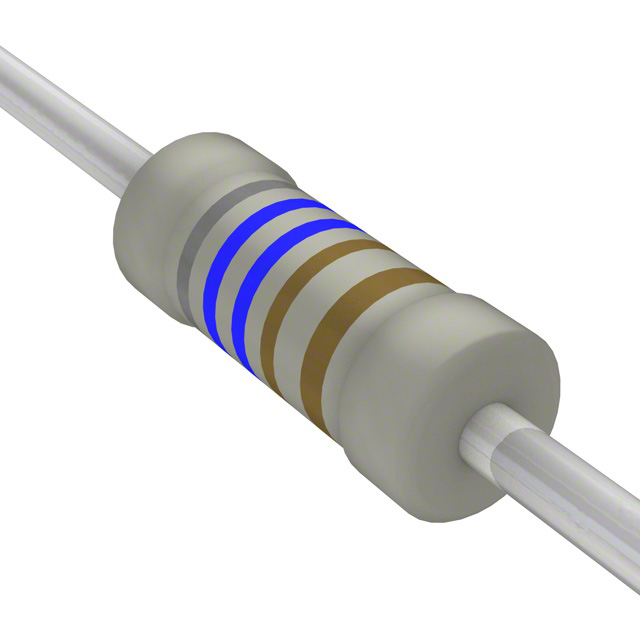

RES 8.66K OHM 1% 0.6W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

Documents1622585 Datasheet

LR1F8K66

Active

TE Connectivity Passive Product

RES 8.66K OHM 1% 0.6W AXIAL

Deep-Dive with AI

Documents1622585 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LR1F8K66

Composition	Metal Film
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	600 mW
Resistance	8.66 kOhms
Size / Dimension [diameter]	2.3 mm
Size / Dimension [diameter]	0.091 "
Size / Dimension [x]	6.2 mm
Size / Dimension [x]	0.244 "
Supplier Device Package	Axial
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

LR1F Series

...

Part	Number of Terminations	Supplier Device Package	Temperature Coefficient	Package / Case	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Tolerance	Power (Watts)	Resistance
TE Connectivity Passive Product LR1F20K	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	20 kOhms
TE Connectivity Passive Product LR1F8K66	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	8.66 kOhms
TE Connectivity Passive Product LR1F3K32	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	3.32 kOhms
TE Connectivity Passive Product LR1F243R	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	243 Ohms
TE Connectivity Passive Product LR1F11R	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	11 Ohms
TE Connectivity Passive Product LR1F3K3	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	3300 Ohms
TE Connectivity Passive Product LR1F1K8	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	1.8 kOhms
TE Connectivity Passive Product LR1F8K2	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	8.2 kOhms
TE Connectivity Passive Product LR1F61K9	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	61.9 kOhms
TE Connectivity Passive Product LR1F300R	2	Axial	50 ppm/°C	Axial	2.3 mm	6.2 mm	0.244 "	0.091 "	155 °C	-55 °C	Metal Film	1 %	600 mW	300 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	12000	$ 0.02

Description

General part information

LR1F Series

8.66 kOhms ±1% 0.6W Through Hole Resistor Axial Metal Film
