SD-PNN12-FLLAL-S00-000
ActiveAdam Tech

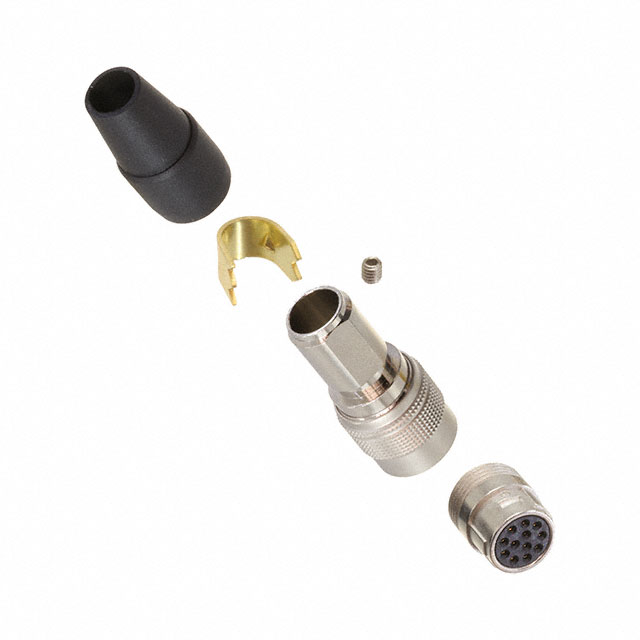

CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
SD-PNN12-FLLAL-S00-000
ActiveAdam Tech
CONN RCPT FMALE 12P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-PNN12-FLLAL-S00-000 |
|---|---|
| Backshell Material, Plating | Nickel, Brass |
| Cable Opening [custom] | 0.291 in |
| Cable Opening [custom] | 7.39 mm |
| Color | Black, Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Fastening Type | Detent Lock |
| Features | Backshell, Strain Relief, Cable Clamp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | DIN |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.35 | |
| 10 | $ 12.52 | |||
| 25 | $ 11.54 | |||
Description
General part information
SD-PNN12 Series
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
