Q-24024000H.25M

Active

Amphenol Custom Cable

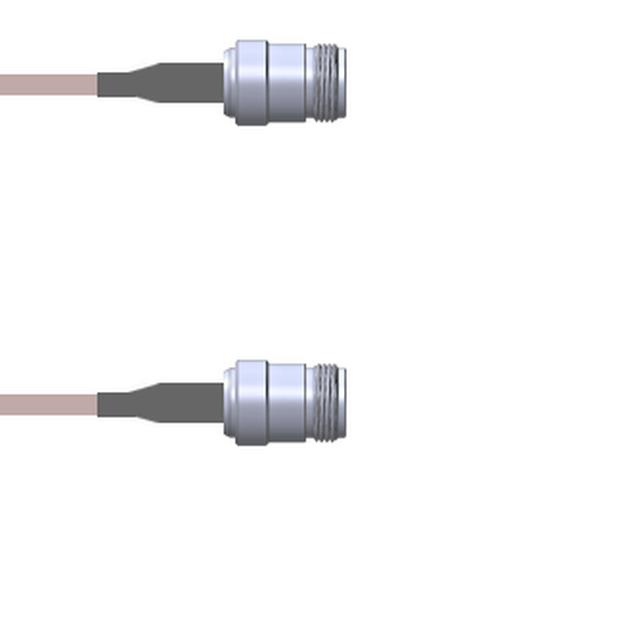

CBL ASSY NTYPE JACK-JACK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-24024000H.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-JACK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-24024000H.25M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-240240 Series

Part	2nd Contact Gender	Style	Color	Length	Length	Length	2nd Connector	Frequency - Max [Max]	Features	Cable Type	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	1st Contact Gender	1st Connector	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-24024000H1.5M	Female	N-Type to N-Type	Copper	59.1 in	4.9 ft	1.5 m	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H0.5M	Female	N-Type to N-Type	Copper	19.69 "		50 cm	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H009i	Female	N-Type to N-Type	Copper	9 "		228.6 mm	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H108i	Female	N-Type to N-Type	Copper	108 in	9 ft	2.7 m	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H018i	Female	N-Type to N-Type	Copper				N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack	457.2 mm	457.2 mm
Amphenol Custom Cable Q-24024000H003M	Female	N-Type to N-Type	Copper	118.1 in	9.8 '	3 m	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H002M	Female	N-Type to N-Type	Copper	78.7 in	6.6 ft	2 m	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H.25M	Female	N-Type to N-Type	Copper				N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack		250 mm	9.843 "
Amphenol Custom Cable Q-24024000H036i	Female	N-Type to N-Type	Copper	36 in		91.44 cm	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack
Amphenol Custom Cable Q-24024000H012i	Female	N-Type to N-Type	Copper	12 "		304.8 mm	N-Type Jack	11 GHz	Shielded	RG-142	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	N-Type Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.67
		25	$ 72.25
		50	$ 70.83
		100	$ 69.41
		250	$ 68.00

Description

General part information

Q-240240 Series

Cable Assembly Coaxial N-Type to N-Type RG-142 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
