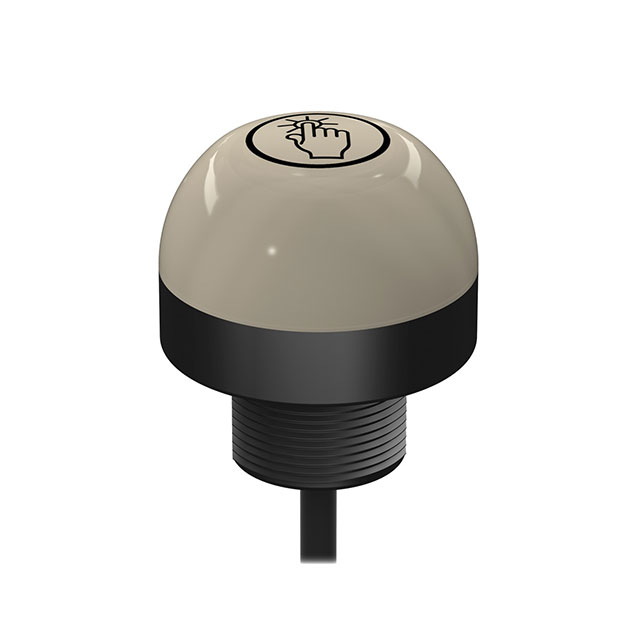

K50APTGRYF2

Active

BANNER ENGINEERING

EZ-LIGHT 3CLR TOUCH SEN PNP NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K50APTGRYF2

Active

BANNER ENGINEERING

EZ-LIGHT 3CLR TOUCH SEN PNP NO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K50APTGRYF2

Actuator Type	Domed, Round, Button
Approval Agency	cULus, CE
Circuit	SPST-NO
Illumination Type, Color	Yellow, Red, LED, Green
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Response Time	50 ms
Switch Function	Off-Mom
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

K50APT Series

Part	Actuator Marking	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Current Rating (Amps)	Ingress Protection	Termination Style	Actuator Type	Type	Illumination Type, Color	Voltage Rating - DC	Circuit	Panel Cutout Dimensions [diameter]	Response Time	Approval Agency	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
BANNER ENGINEERING K50APT2RGXC11Q	No Marking	Black	-40 °C	50 °C	On-Mom	175 mA	IP67 IP69K	Connector	Button Domed Round	Illuminated	Green/Red LED	30 V
BANNER ENGINEERING K50APT2GRCQ			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green/Red LED		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APTGRCQ			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green/Red LED		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APTGYCQ			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green LED Yellow		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APTXGHQ			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green LED		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APTGRYF2			-40 °C	50 °C	Off-Mom		IP67 IP69K	Cable Leads	Button Domed Round		Green LED Red Yellow		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APT2GRYF2Q			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green LED Red Yellow		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APT2GXDQ			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green LED		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APTGROF2Q			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green/Red LED		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC
BANNER ENGINEERING K50APTGRYF2Q			-40 °C	50 °C	Off-Mom		IP67 IP69K	Connector (M12)	Button Domed Round		Green LED Red Yellow		SPST-NO	30 mm	50 ms	CE cULus	Panel Mount Front	12 V	30 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 180.00

Description

General part information

K50APT Series

EZ-LIGHT 3CLR TOUCH SEN PNP NO
