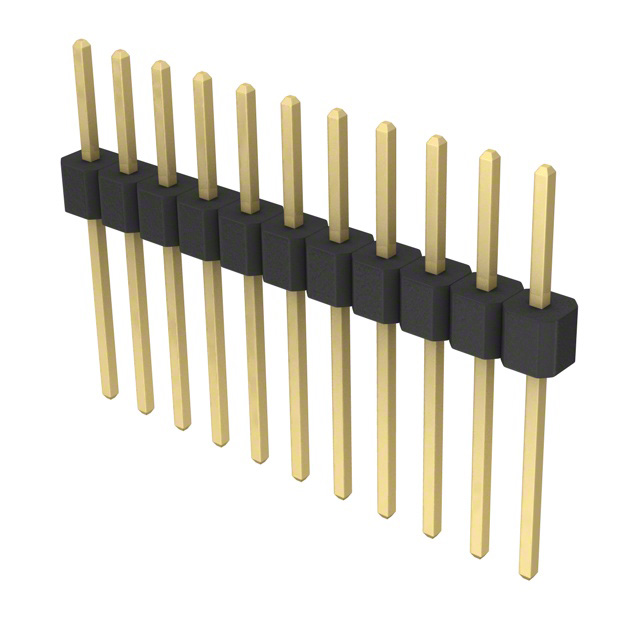

PRPC011SADN-RC

Unknown

Sullins Connector Solutions

CONN HEADER VERT 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC011SADN-RC

Unknown

Sullins Connector Solutions

CONN HEADER VERT 11POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC011SADN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	19.01 mm
Overall Contact Length	0.748 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC011 Series

Part	Number of Rows	Contact Material	Material Flammability Rating	Shrouding	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Number of Positions Loaded	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Insulation Height [z]	Insulation Height [z]	Fastening Type	Insulation Material	Termination	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Insulation Color	Style	Connector Type	Contact Finish Thickness - Mating	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Overall Contact Length	Insulation Height	Insulation Height
Sullins Connector Solutions PRPC011DFAN-RC	2	Brass	UL94 V-0	Unshrouded	Gold	2.54 mm	0.1 in	3 A	All	22 positions	0.12 in	3.05 mm	Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder	13.63 mm	0.537 "	Gold	Through Hole	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.318 "	8.08 mm	0.1 in	2.54 mm
Sullins Connector Solutions PRPC011SFAN-RC	1	Brass	UL94 V-0	Unshrouded	Gold			3 A	All	11	0.12 in	3.05 mm	Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder	13.63 mm	0.537 "	Gold	Through Hole	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.318 "	8.08 mm	0.1 in	2.54 mm
Sullins Connector Solutions PRPC011SBBN-M71RC	1	Brass	UL94 V-0	Unshrouded	Gold			3 A	All	11			Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder			Gold	Through Hole Right Angle	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.23 in		0.1 in	2.54 mm	0.22 in	5.58 mm	5.84 mm
Sullins Connector Solutions PRPC011SGAN-M71RC	1	Brass	UL94 V-0	Unshrouded	Gold			3 A	All	11	0.12 in	3.05 mm	Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder			Gold	Through Hole Right Angle	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.318 "	8.08 mm	0.1 in	2.54 mm
Sullins Connector Solutions PRPC011SADN-RC	1	Brass	UL94 V-0	Unshrouded	Gold			3 A	All	11	0.42 in	10.67 mm	Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder		19.01 mm	Gold	Through Hole	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.23 in		0.1 in	2.54 mm			5.84 mm	0.748 in
Sullins Connector Solutions PRPC011DBAN-M71RC	2	Brass	UL94 V-0	Unshrouded	Gold	2.54 mm	0.1 in	3 A	All	22 positions	0.12 in	3.05 mm	Square			Push-Pull	Polybutylene Terephthalate (PBT)	Solder			Gold	Through Hole Right Angle	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.23 in		0.1 in	2.54 mm			5.84 mm		0.197 in	5 mm
Sullins Connector Solutions PRPC011SBAN-M71RC	1	Brass	UL94 V-0	Unshrouded	Gold			3 A	All	11	0.12 in	3.05 mm	Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder			Gold	Through Hole Right Angle	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.23 in		0.1 in	2.54 mm			5.84 mm
Sullins Connector Solutions PRPC011SBCN-M71RC	1	Brass	UL94 V-0	Unshrouded	Gold			3 A	All	11	0.32 in	8.13 mm	Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder			Gold	Through Hole Right Angle	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.23 in		0.1 in	2.54 mm			5.84 mm
Sullins Connector Solutions PRPC011DABN-RC	2	Brass	UL94 V-0	Unshrouded	Gold	2.54 mm	0.1 in	3 A	All	22 positions			Square	0.098 in	2.5 mm	Push-Pull	Polybutylene Terephthalate (PBT)	Solder		14.18 mm	Gold	Through Hole	-40 °C	105 ░C	Flash	Black	Board to Board Cable	Breakaway Header	Flash	Male Pin	0.23 in		0.1 in	2.54 mm	0.23 in	5.84 mm	5.84 mm	0.558 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PRPC011 Series

Connector Header Through Hole 11 position 0.100" (2.54mm)
